M720 TOUCH SCREEN PUMP INVERTER 15-22KW

M720 series intelligent pump drives: IP65,dust-proof,water-proof and can be mounted directly on the wiring box of motors,compatible with types of transducers.The operation system is easy and simple,reliable and good performace with low noise ,can realize pumps to combine work.

Selection table

Model	Output Power	Input & output Voltage	Output Rated Curren	Adaptive Motor Power	Outline Dimentions ( mm)			Installation Diameter
	(KW)	(V)	(A)	(KW)	H	W	D	(mm)
Y720-2SR75A0	0.75	Single phase in 220VAC, Three phase out 220VAC	4	0.75	198	205	108	φ 4
Y720-2S1R5A0	1.5	Single phase in 220VAC, Three phase out 220VAC	7	1.5	198	205	108	φ 4
Y720-2S2R2A0	2.2	Single phase in 220VAC, Three phase out 220VAC	10	2.2	198	205	108	φ 4
Y720-4TR75A0	0.75	Three phase in and out 380VAC	2.1	0.75	198	205	108	φ 4
Y720-4T1R5A0	1.5	Three phase in and out 380VAC	3.8	1.5	198	205	108	φ 4
Y720-4T2R2A0	2.2	Three phase in and out 380VAC	5.1	2.2	198	205	108	φ 4
Y720-4T003A0	3.0	Three phase in and out 380VAC	7	3.0	198	205	108	φ 4
Y720-4T004A0	4.0	Three phase in and out 380VAC	9	4.0	290	209	185	φ 5
Y720-4T5R5A0	5.5	Three phase in and out 380VAC	13	5.5	290	209	185	φ 5
Y720-4T7R5A0	7.5	Three phase in and out 380VAC	17	7.5	290	209	185	φ 5
Y720-4T011A0	11	Three phase in and out 380VAC	25	11	290	209	185	φ 5
Y720-4T015A0	15	Three phase in and out 380VAC	32	15	368	319	165	φ 5
Y720-4T018R5A0	18.5	Three phase in and out 380VAC	38	18.5	368	319	165	φ 5
Y720-4T022A0	22	Three phase in and out 380VAC	45	22	368	319	165	φ 5

TECHNICAL PARAMETERS

Controlling Characteristic
Starting Torque	0.5Hz100%
Speed Adjustable Range	1:100
Speod-holding precision	±1.0%
Overload Capability	150% rated current for 60s 180% rated current for 1s
Acceleration/deceleration Time	0.1-3600s

Input&Output Parameters
Starting Frequency	0.01~10.00Hz
Input Voltage	220V/380±15%
Input Frequency Range	50/60Hz,fluctuation±5%
Output Voltage	0-rated input voltage
Output Frequency	0-200Hz

Peripheral Interface
Programmable Digital Input	2 way of digital terminal input
Programmable Analog Input	V:0-5V V(remote pressure gauge):0-10V C (pressure transducer ):4-20mA
Replay Output	1 way output,pragrammable
Open Collection Output	1 way output,pragrammable

Use Condition
Installation	Installation should be executed under the conditions of no direct sunlight,dust,corrosive gas,inflammable gas,oil mist,steam and water drop
Altitude	Lower than 1000m, service in derated capacity above 1000m.Derate 1% capacity every 100m increase in temperature
Environment Temperature	-10℃-+40℃,service in derated capacity for 40℃-50℃.Derate 4% capacity every 1℃ increase in height
Humidity	≤95%RH,no water condensation.
Vibration	<5.9m/52(0.6G)

Basic Functions
Command Running Channel	Three kinds of channels:1.Operational panel 2.Control terminal,3.Serial communication port,choose 1 and 2 for master drive and 3 for auxiliaries
Built-in PID	Advanced PID arithmetic to realize closed loop control system
Stall Speed Control	Automatically limit current and voltage at running period to prevent tripping due to frequent overcurrent or overvoltage
Master and Auxiliaries connection	Extensible RS485 design,one drive in the system can be master and controls the other auxiliary drives (4 at most) to work by communication mode,Master drive sends PID feedback information to the auxiliary drives and monitors status of auxiliaries in real time.Any failure of the auxiliary drives does not affect the others
Water Shortage Protection	If the drive detects the pipe pressure is lower than the water shortage pressure set value, the system stops working automatically.After set period time, it restarts automatically for specified times.If pressure restores to normal,system works normally,otherwise,system stops automatically in case of idle running of pump and prolongs pump lifetime to the maximum extent
High Pressure Alarm	When pressure exceeds set pressure,it stops running automatically to avoid damage on pipe network due to high pressure
Automatic Energy-saving Running	Automatically lower output voltage under light loading to save energy
Password Setting	4-bit password can be set with non-zero numbers,Exit password setting interface and the password will be valide in 1 minute
Parameters Locking	Define whether the parameter is locked in running or stopped status in case of misoperation

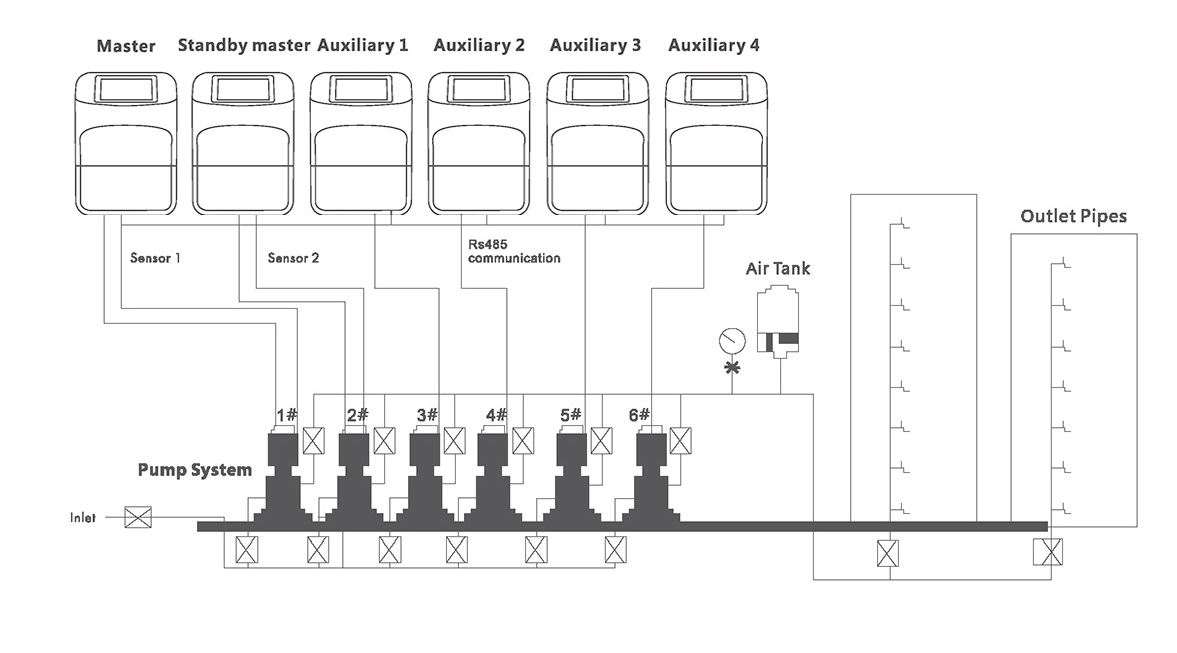

FUNCTION OF DOUBLE MASTER CONTROLLED

MUTI-PUMPS WORKING SYSTEM

Interoperation between master and auxiliaries by RS485 communication,5 auxiliaries at most.
Main master drive detects pipe pressure and sends the signal to the auxiliary and automatically commands the auxiliary to start or slop according to the pipe pressure and PID status.
Main master monilors the running status of auxiliaries,when the main master failed,the stand by master will aulomatically be switched into main master.When one auxiliary failed,the controlling signal will skip to slartl the next auxiliary,

so the muti-pumps can work alternatively.
