AUSENIST Solar Pump Inverter - 97-99% MPPT Efficiency Hybrid AC/DC IP65 Protection

Product Item：

MPPT Efficiency:97-99%;
Protection Grade:IP65;
Power Type:Hybrid AC/DC;
Water Output:+30%;
16 Years Manufacturing Experience;
OEM/ODM Available

Product Detail
FAQs

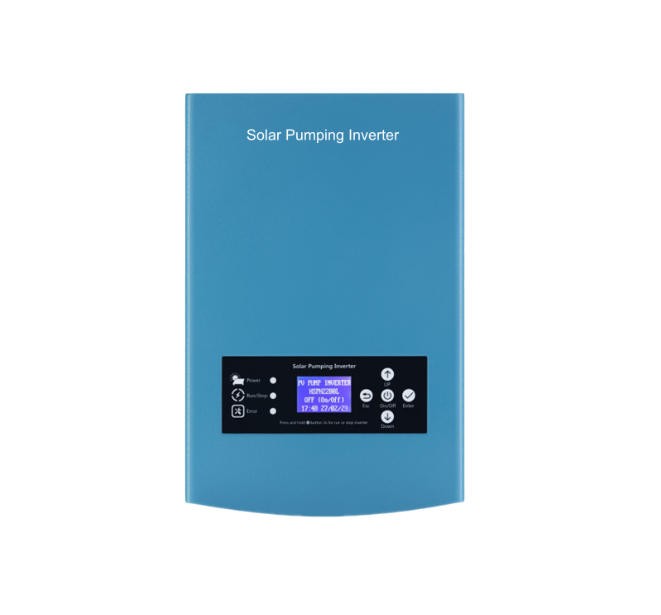

YSG Series Solar Pump Inverter: 0.75KW - 200KW High-Efficiency Solution for Agriculture & Water Supply

Let the Sun Work for You – Fully Automatic, Zero-Energy Consumption, Eco-Friendly Water Pumping Expert

Product Overview

The YSG Series Solar Pump Inverter is an advanced DC to AC conversion device specifically designed to drive various AC induction motor water pumps. By absorbing DC power generated by solar panels and optimizing it to drive water pumps, the system automatically adjusts output voltage and frequency based on sunlight intensity, ensuring highly efficient water pumping operations under all lighting conditions.

Core Advantages & Technical Features

Ultra-High Energy Utilization (MPPT Technology): Adopts the latest Maximum Power Point Tracking (MPPT) algorithm with a tracking efficiency of up to 97%–99%. Compared with traditional PWM controllers, efficiency is improved by approximately 30%, ensuring every watt of power generated by solar panels is fully utilized.
All-Weather Hybrid Mode: Supports automatic switching between solar energy and mains/generator power. When sunlight is insufficient or for night-time operation, the system automatically supplements AC power; once sunlight is restored, it switches back to solar mode automatically, ensuring 24/7 uninterrupted water supply.
Intelligent Remote Monitoring (4G/WiFi Optional): With an optional 4G/WiFi module, users can real-time view operating data, fault history, and even achieve remote one-click start/stop and parameter settings via mobile App or computer terminal (www.solarwatercloud.com).
Built-in Booster Function: Specific power models (e.g., partial models from 0.75KW to 2.2KW) are equipped with a built-in booster, allowing water pumps to start with fewer solar panels and significantly reducing initial system investment costs.
Rugged Outdoor Design: Features IP65 protection rating (IP21 for some high-power cabinets), dustproof and waterproof, specially designed for harsh outdoor environments such as agricultural irrigation.
Comprehensive Safety Protection: The system integrates lightning protection, overvoltage, overload, short circuit, overtemperature, water tank overflow, and well dry-run protection (detectable via sensors or software), effectively extending the service life of water pumps.

Technical Specification Summary

Features	Parameter Specifications
Power Range	0.75KW to 200KW (1HP - 266HP)
Pump Compatibility	Single/Three Phase 220V/240V; Three Phase 380V/400V/440V
MPPT Efficiency	99%
Output Frequency	50/60 Hz (programmable adjustment 15-60Hz)
Driving Mode	Three-Phase Variable Frequency Drive (VFD)
Cooling Method	Natural cooling or forced air cooling (IP68 fan)
Operating Temperature	-10℃ to 60℃ (derating required above 60℃)

Wide Range of Applications

Modern Agriculture: Large-scale farm irrigation, orchard water-saving irrigation.
Community Water Supply: Providing clean drinking water for remote villages, schools and communities.
Livestock Water Supply: Automatic drinking water systems for livestock in vast pastures.
Environmental Governance: Desert control, vegetation irrigation and pond aeration.

Why Choose Our Solution?

With 16 years of R&D and manufacturing experience in solar pump inverters, our factory is ISO9001 certified. We not only provide high-performance inverters but also offer a complete turnkey solution from design to after-sales support, including local technical support and up to 25 years of product support.

Model Information		Solar Input Parameters			Hybrid AC Power	Pump Parameters					Physical Specifications
SOI Inverter Model	Inverter Model (X)	Rated Power (kW)	Vmp Min-Vmp Max (V)	Recommended Panel Voltage (V)	Input Voltage(V) AC	Pump (Ø)	Pump Voltage (V)	Pump Frequency (Hz)	Pump Power (kW)	Gross Weight (KG)	Dimension (CM)
HSPH750LB	YSG750SB	0.75	120-450	≥100 (Built-in booster)	Single phase 220/240V, 50/60Hz	1 or 3	220/230/240V	50 - 60Hz	≤750 W	6	423020CM
HSPH150LB	YSG150SB	1.5	120-450	≥160 (Built-in booster)	Single phase 220/240V, 50/60Hz	1 or 3	220/230/240V	50 - 60Hz	≤1500 W	9	483020CM
HSPH150ZL	YSG1500S	1.5	200-450	≥30 (Only Solar) / ≥30 (Hybrid Power)	Single phase 220/240V, 50/60Hz	1 or 3	220/230/240V	50 - 60Hz	≤1500 W	6	423020CM
HSPH220ZL	YSG2200S	2.2	200-450	≥30(Only Solar) / ≥30 (Hybrid Power)	Single phase 220/240V, 50/60Hz	1 or 3	220/230/240V	50 - 60Hz	≤2200 W	6	423020CM
HSPH370ZL	YSG3700S	3.7	200-450	≥30(Only Solar) / ≥30 (Hybrid Power)	Single phase 220/240V, 50/60Hz	1 or 3	220/230/240V	50 - 60Hz	≤3700 W	10	503522CM
HSPH550ZL	YSG5500S	5.5	200-500	≥30(Only Solar) / ≥30 (Hybrid Power)	Single phase 220/240V, 50/60Hz	1 or 3	220/230/240V	50 - 60Hz	≤5500 W	15	593528
HSPH750ZL	YSG7500S	7.5	200-500	≥30(Only Solar) / ≥30 (Hybrid Power)	Single phase 220/240V, 50/60Hz	1 or 3	220/230/240V	50 - 60Hz	≤7500 W	15	593528
HSPH220GB	YSG2200GB	2.2	300-700	≥340 (Built-in booster)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤2200 W	9	483020CM
HSPH370GH	YSG3700G	3.7	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤3700 W	7.5	483020CM
HSPH4000	YSG4000G	4	400-800	≥50(Only Solar) / ≥50 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤4000W	7.5	483020CM
HSPH5500H	YSG5500G	5.5	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤5500 W	7.5	483020CM
HSPH7500H	YSG7500G	7.5	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤7500 W	9	503522CM
HSPH9200H	YSG9200G	9.2	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤9200 W	10	503522CM
HSPH11KH	YSG11KG	11	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤11KW	10	503522CM
HSPH15KH	YSG15KG	15	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤15KW	10	503522CM
HSPH18.5KH	YSG18.5KG	18.5	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤18.5KW	15	593528CM
HSPH22KH	YSG22KG	22	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤22KW	15	503522CM
HSPH26KH	YSG26KG	26	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤26KW	22	704729CM
HSPH30KH	YSG30KG	30	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤30KW	23	704729CM
HSPH37KH	YSG37KG	37	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤37KW	46	764545CM
HSPH45KH	YSG45KG	45	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤45KW	72	845447CM
HSPH55KH	YSG55KG	55	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤55KW	72	845447CM
HSPH75KH	YSG75KG	75	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤75KW	75	845447CM
HSPH100KH	YSG100KG	100	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤100KW	103	985250CM
HSPH110KH	YSG110KG	110	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤110KW	106	985250CM
HSPH120KH Wall mounted	YSG12KG	120	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤120KW	98	985250CM
HSPH132KH Cabinet Type	YSG132G	132	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤132KW	250	1907850CM
HSPH160KH	YSG160KG	160	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤160KW	350	1509265CM
HSPH200KH remote control	YSG200KG Support 4G/WiFi module	200	400-800	≥50(Only Solar) / ≥540 (Hybrid Power)	Three phase 380/400/440V, 50/60Hz	3	380/400/440V	50 - 60Hz	≤200KW	350	1509265CM

Q: When will you arrange production?
A: We typically initiate production immediately upon receipt of your payment, provided the item is in stock. Otherwise, please consult with us to confirm the lead time.

Q: What is your accepted payment type?
A: We accept wire transfers, Paypal, Western Union, and Alibaba Trade Assurance. However, and Western Union, along with Alibaba Trade Assurance,

Q: Which logistic forwarders do you usually work with?
A: We collaborate with reputable logistics providers such as EMS, TNT, UPS, FedEx, and others. You also have the option to designate your own forwarder for shipment.

Q: What voltage range can you support?
A:

· Single 220V input, three-phase 220V output.

· Three-phase 220V input, three-phase 220V output.

· Three-phase 380V input, three-phase 380V output.

· Single-phase 380V input, three-phase 380V output.

· Single 220V input, three-phase 380V output.

· 220V/380V/480V/690V/1140V.

Q: How do you ensure product quality?
A: Our production strictly adheres to the ISO9001 quality control system. Following four rounds of quality inspection and high-temperature testing, we affix the "QA" pass label.

Q: Do you accept OEM business?
A: Yes, we gladly accept OEM and ODM projects with your authorization.

Q: Can I place a sample order?
A: Certainly, we encourage sample orders for quality testing. Mixed samples are also acceptable.

Q: What is the lead time?
A: Sample orders require 3-5 days, while mass production typically takes 1-2 weeks.

Q: Do you offer a guarantee for your products?
A: Yes, we provide an 18-month warranty.

Q: What is your return policy?
A: We accept returns within 30 days of delivery for items that are damaged or defective. Please contact our customer service team to initiate the return process.

Q: How can I track my order?
A: Once your order is shipped, you will receive a tracking number via email. You can use this number to track your shipment through the respective logistics provider's website.

Q: Are your products compliant with international standards?
A: Yes, our products are manufactured to meet or exceed international quality and safety standards. We ensure compliance with relevant regulations and certifications.

Q: Can I customize the specifications of a product?
A: Yes, we offer customization options for certain products. Please reach out to our sales team to discuss your specific requirements and receive a quote.

Q: What do I do if I encounter technical issues with a product?
A: In case of technical issues, please contact our technical support team. They will provide assistance, troubleshooting guidance, or arrange for necessary repairs or replacements.

Q: Is international shipping available?
A: Yes, we offer international shipping. Shipping costs and delivery times vary based on the destination. Please contact us for specific information regarding international shipments.

...
