Quanzhou Ausenist Technology Co., Ltd PC-58(P) Pressure Control
描述/DESCRIPTIONS
1.自动控制水泵运行和停止
2.缺水时自动停止水泵工作
3.断电后，来电自动启动
4.手动强制启动
5.过压力保护，系统压力超过10bar自动停止水泵工作
6.缺水自启后的时间间隔是1分钟,30分钟,1小时无限循环
7.防卡保护，水泵长时间不使用，48小时内强启一次
8.采用压力传感器和LED显示，实时掌握系统压力值
9.内置两种工作模式，自动模式:
a.控制器可以根据管道内压力大小情况，自动调节启动压力值，可以监控管道内压力大小，管道压力越大启动压力越大，管道压力越小启动压力越小，无需人工设定，避免人为设定启动压力与水泵扬程不匹配而造成水泵不启动的故障发生,可以在10米-98米扬程、额定电压、电流和功率范围内的水泵上随意使用，特别适用于多种压力混合叠加的系统（如自来水压或其他增压泵压力等），与传统压力控制器相比，极大的降低故障的发生，从而减少后期的售后成本，更智能；
b.普通模式: 可以人工设定启动压力值，0.5-6.0bar可调，调压范围宽，操作简单。
10.螺纹接口: G1"外螺纹
11.可按用户要求配置
1.Stop and start the pump automatically
2.Stop the pump in the case of water shortage
3.After power cut off, restart the pump automatically when the power on
4.Manual forced start
5.Over-pressure protection, stop the pump automatically when the system pressure exceeds 10 bar
6.Automatically restart after water shortage, the restart interval time is 1 minute,30 minutes, 1 hour recycle
7.Anti-stick protection, the control will start the pump automatically by 1 time in 48hours to prevent the pump get stuck in the condition of long time no use
8.With pressure sensor and LED display, to manager the system pressure value real-time
9.Built-in two working mode:
a.Automatic mode: The control adjust the starting pressure according to the pressure in the pipe and real-time monitoring. The higher the pipe pressure, the higher the start pressure, the lower the pipe pressure, the lower the start pressure, No need manual set, with this function, can avoid the problem occur because of wrong set of start pressure, such as the start pressure may not match with the pump lift will make the pump not start normally. It can be used for the pumps that the head between 10m-98m, conform to rated voltage, current, and power, especially applied to multiple pressure mixed superimposed systems (such as tap water pressure or other booster pumps, etc).Compare with the traditional pressure controller, it can reduce the occurrence of failure, thus reducing after-sales cost and more intelligent.
b.Normal mode: manually set starting pressure, 0.5-6.0bar adjustable, wide range of adjustment, easy to operate.
10.Joint screw: G1" male
11.It can be configured according to customers' needs.
可供选择项/OPTIONS
1.颜色 Color | 2.快速接头G1" G1" plastic pipe joint for a quick connection to water pump | 3.电源线长 Power cable length |
技术参数/TECHNICAL DATA
0.5-6.0bar 启动压力 Starting Pressure | 10A or 16A 最大额定电流 Max Rated Current | 1.1KW or 2.2KW 最大功率 Max Power | 10bar 允许最大压力 Max Allowable Pressure | 110V or 220V 额定电压 Rated Voltage |
50/60HZ 频率 Frequency | 40℃ 最高环境温度 Max Ambient Temperature | 60℃ 最高介质温度 Max Liquid Temperature | IP65 Protection防护等级 |
包装信息/PACKING INFORMATION
BOX SIZE(CM): 20.5x17x18.3
PCS/CTN: 12
20GP QUANTITIES(PCS): 4188
PACKING SIZE(CM): 52.5x42.5x38.5
N.W.(KGS): 17
G.W.(KGS): 19
Pump Troubleshooting Table
Issue | Cause | Solution |
Intermittent Motor Operation | 1. Voltage too high/low triggering thermal protector 2. Poor ventilation causing insufficient motor heat dissipation 3. Pump operating outside nameplate parameters | 1. If voltage can’t be adjusted, use the pump intermittently 2. Improve ventilation conditions 3. Reduce parameters or replace with a higher-power pump |
Poor/No Water Supply | 1. Insufficient priming 2. Poor sealing of water inlet pipeline 3. Inlet pipe diameter too small 4. Suction height exceeds pump capacity 5. Inlet pipe installed higher than pump inlet 6. Motor reversed rotation 7. Damaged impeller blades | 1. Re-prime and fill the pump 2. Reseal with sealing material 3. Replace inlet pipe with one matching the pump’s inlet diameter 4. Adjust suction height (max 6 meters in principle) 5. Lower the inlet pipe installation height (must be below the pump inlet) 6. Check motor rotation direction (clockwise when viewed from the fan end) 7. Replace the impeller |
Pump Leakage | 1. Worn seals 2. Worn gaskets | 1. Replace seals 2. Replace gaskets |

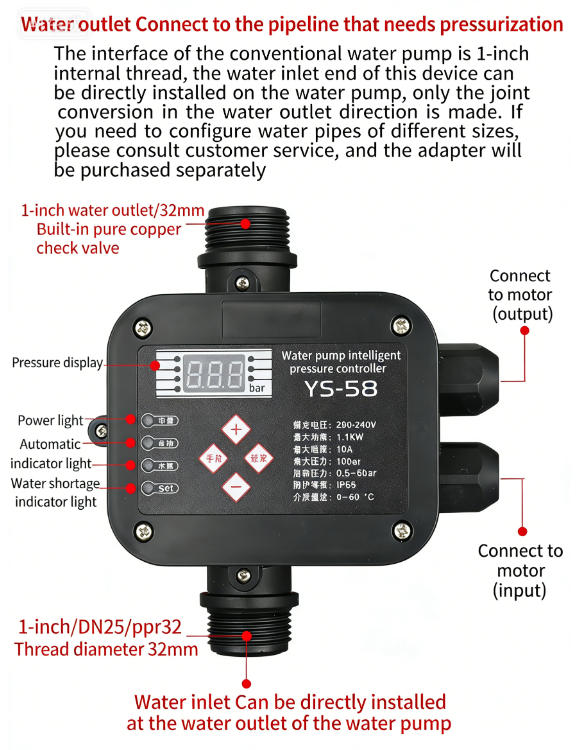

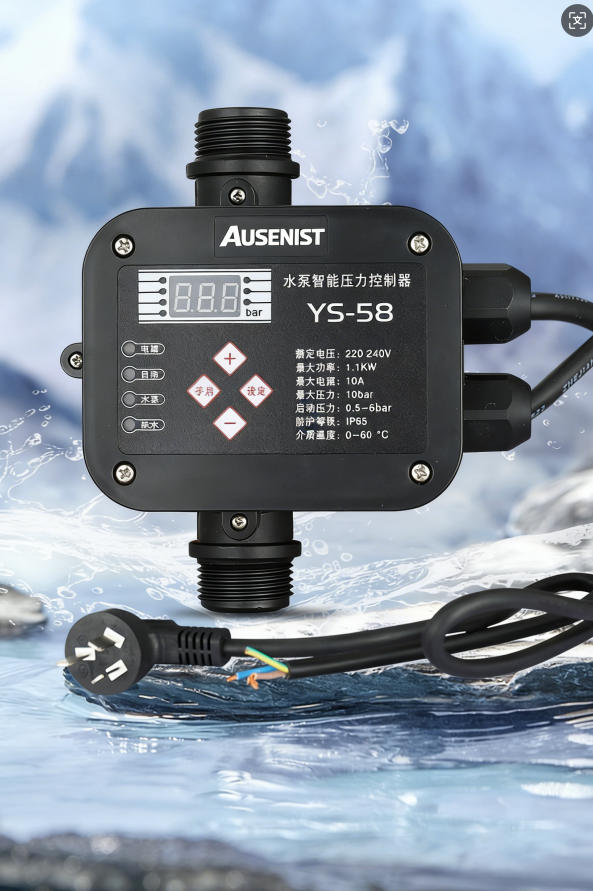

YS-58 Automatic Water Flow Household Electronic Smart Adjustable Full-Automatic Pump Controller
Color/Model VariantKey SpecificationsAdditional Notes
PC-69LKAdjustable start/stop pressure-
PC-10LAComes with 20cm cable-
PC-101-inch port, 1100W-
PC-10 (0.8)1-inch port, 1100W-
PC-10PL1.2-inch port, 2200W-
PC-12D1-inch port, 1100W-
PC-131-inch port, 1100W-
PC-19 (0.6)1-inch port, 1100W-
PC-191-inch port, 1100W-
PC-531-inch port, 1100W-
PC-58 (All Black)1-inch port, 1100WStore Manager's Recommendation
PC-58 (Green)1-inch port, 1100W-
PC-58S1-inch port, 1100W-
PC-58L1-inch port, 1100W-
PC-58LP1-inch port, 2200W-
PC-58A1.2-inch port, 2200W-
PC-58 (Green)1.2-inch port, 2200W-
AD-03Adjustable pressure-
PC-10P1.2-inch port, 2200W-
PC-58L-DN321.2-inch port, 2200W-
PC-69T1-inch port, 2200W-
PC-39Adjustable start/stop pressure-
PC-39ND25 Set-For deep well pumps
PC-39ND32 Set-For deep well pumps
PC-39ND40 Set-For deep well pumps
PC-39ND50 Set-For deep well pumps
