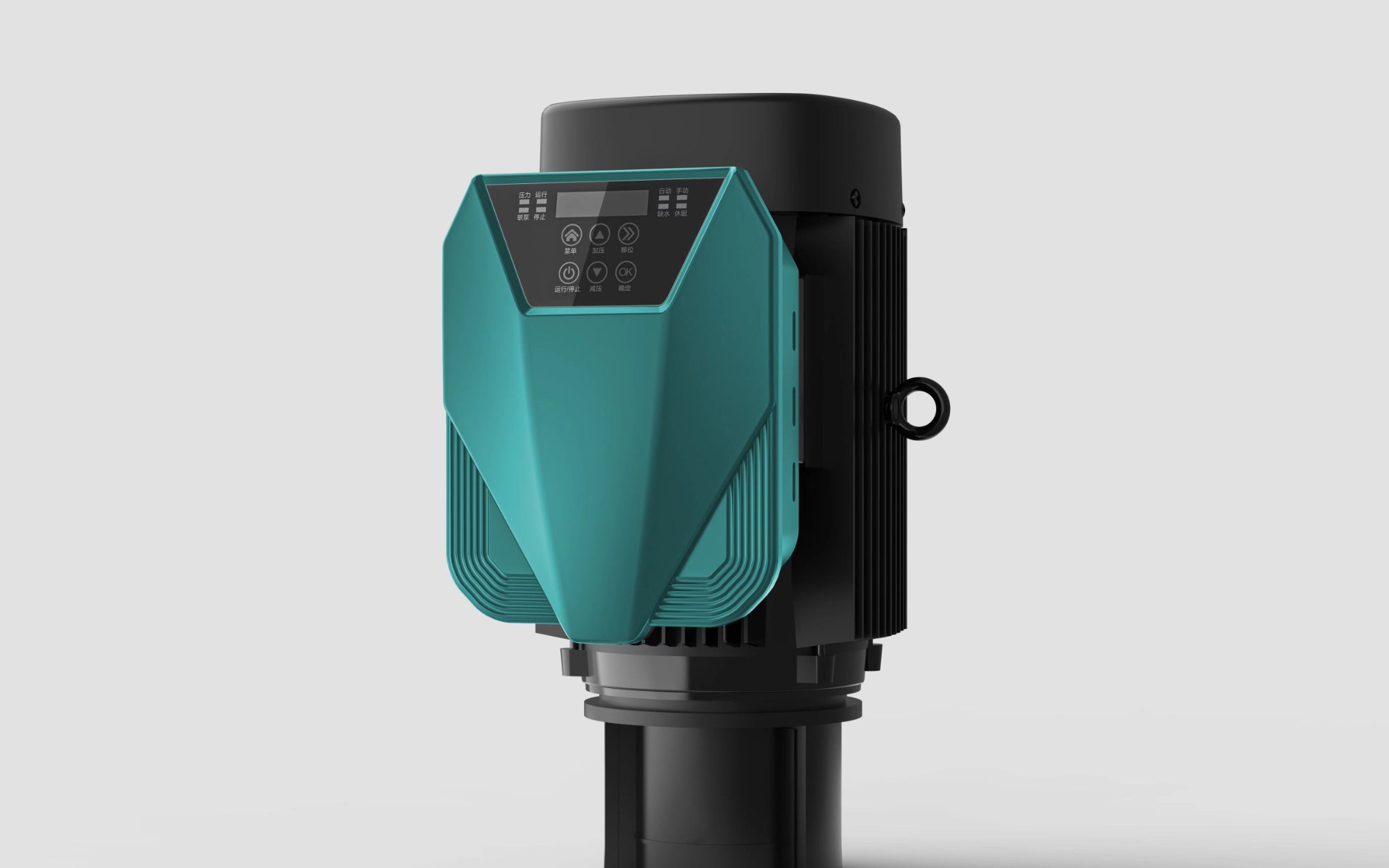

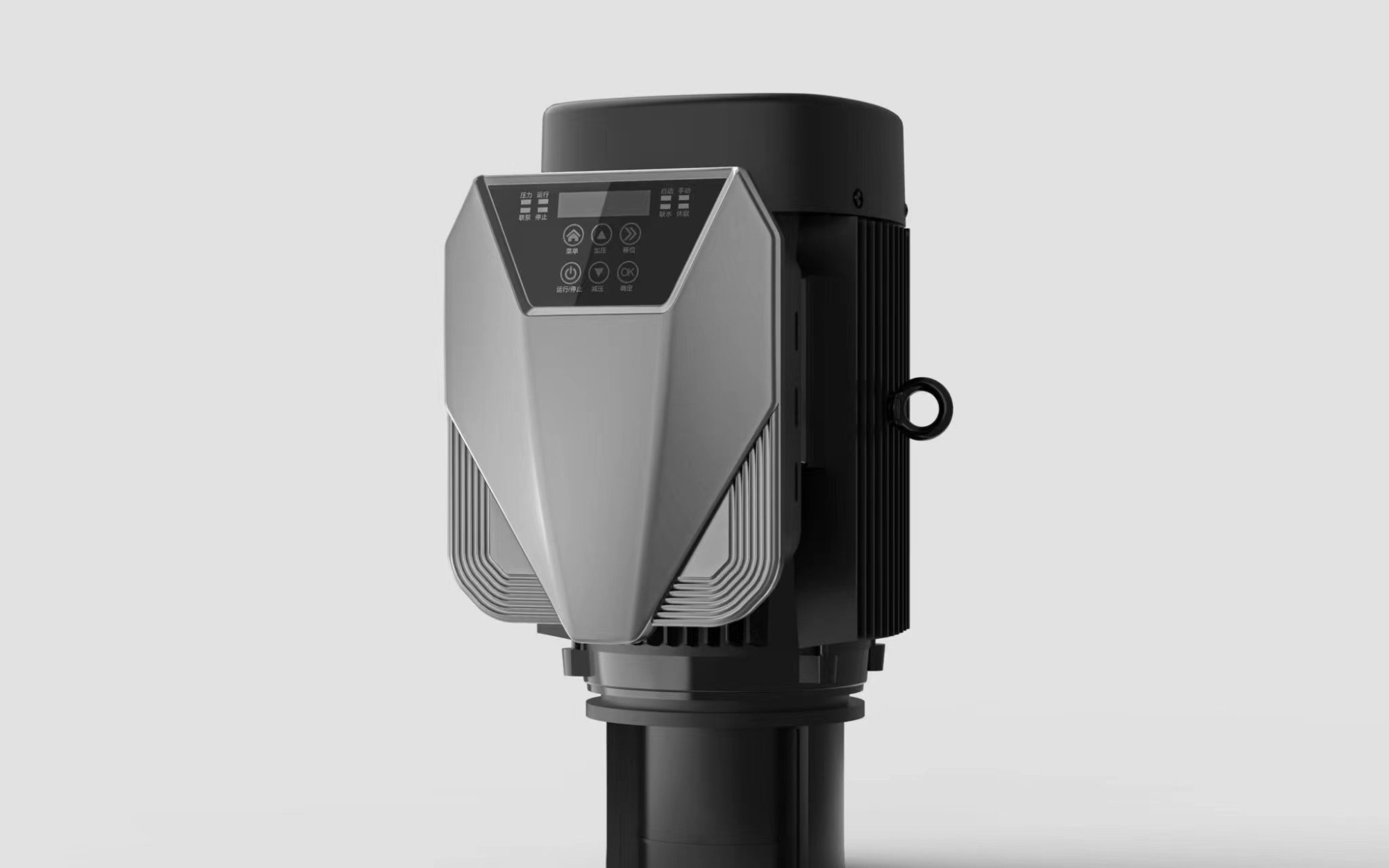

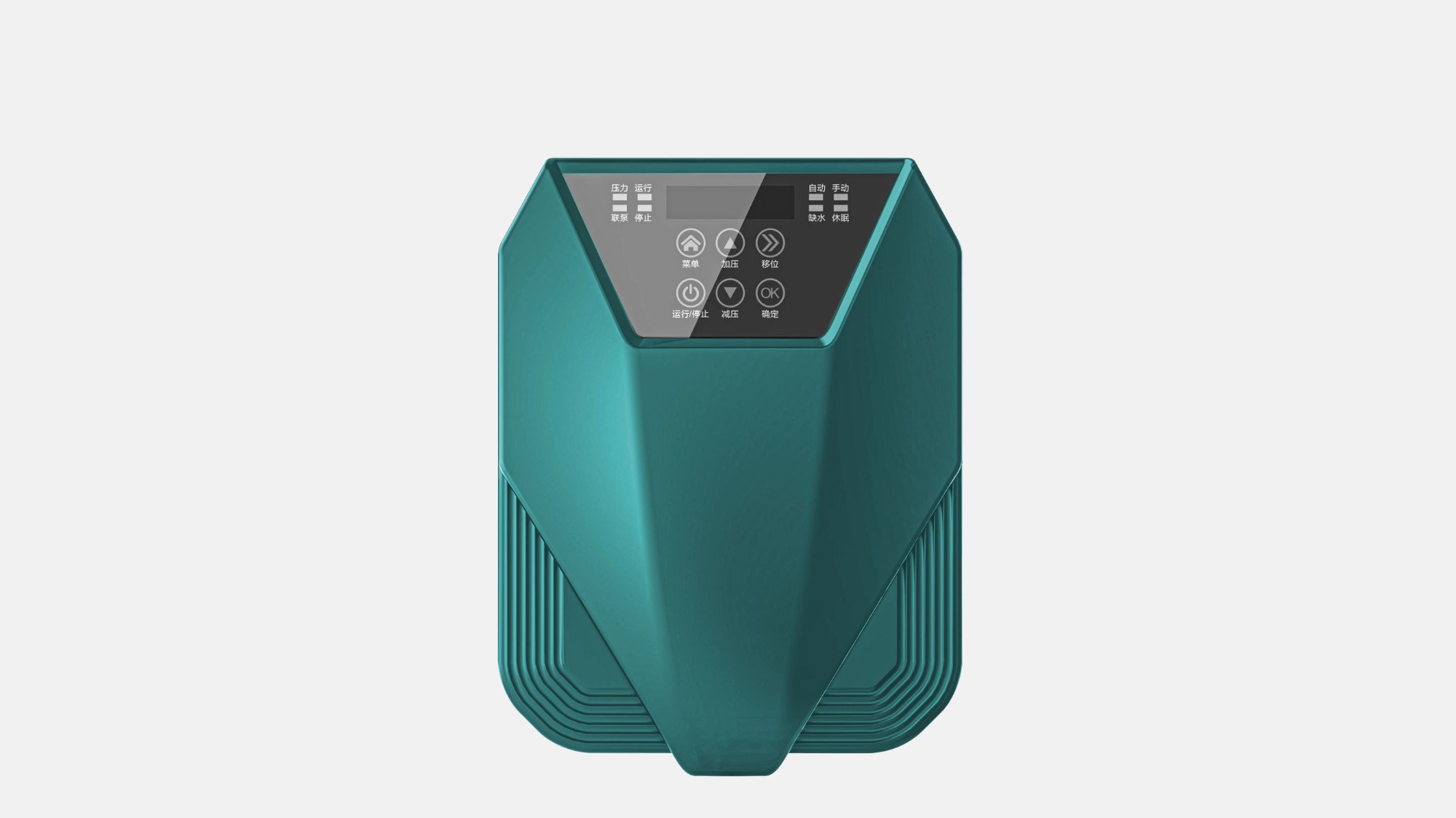

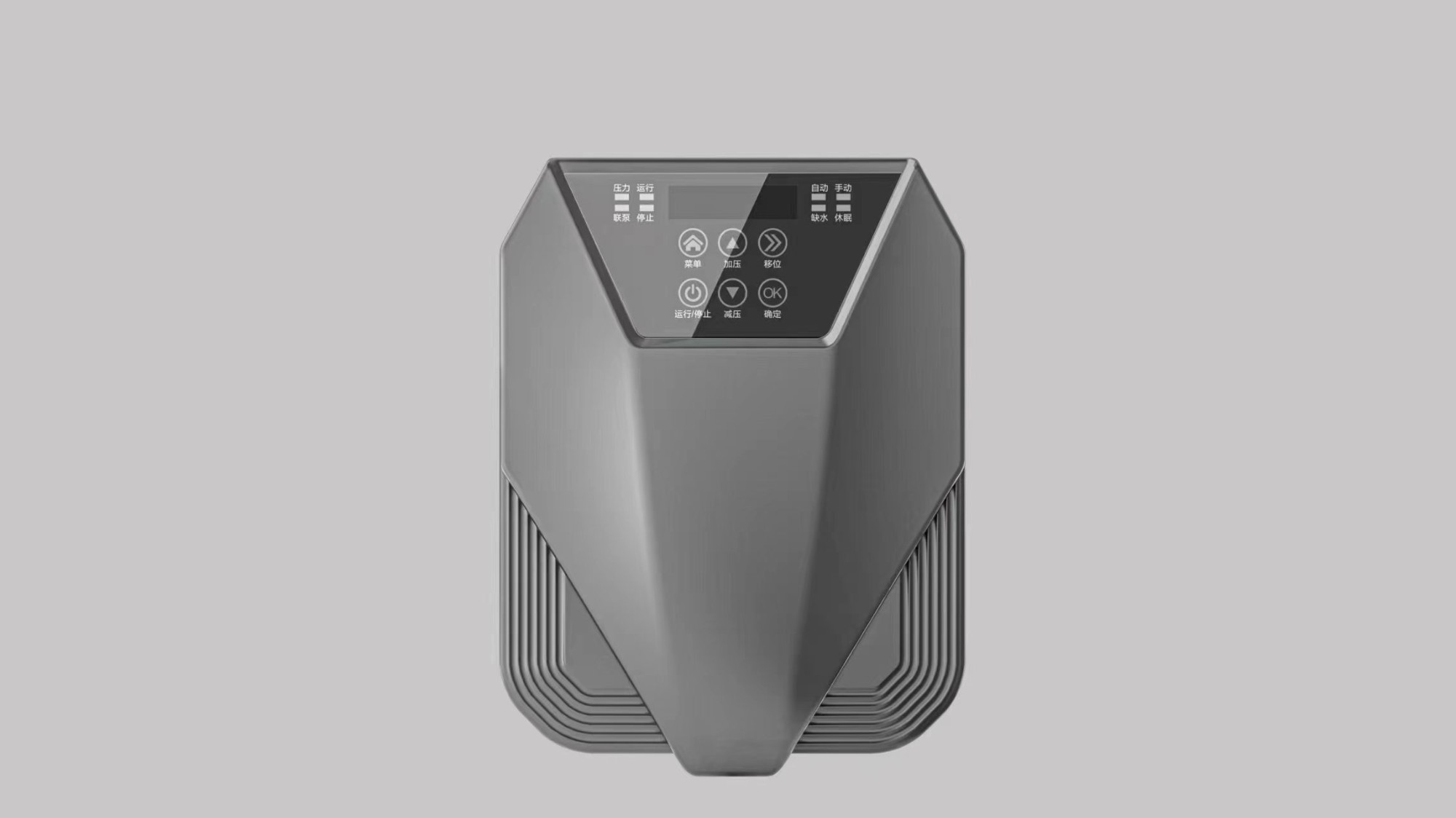

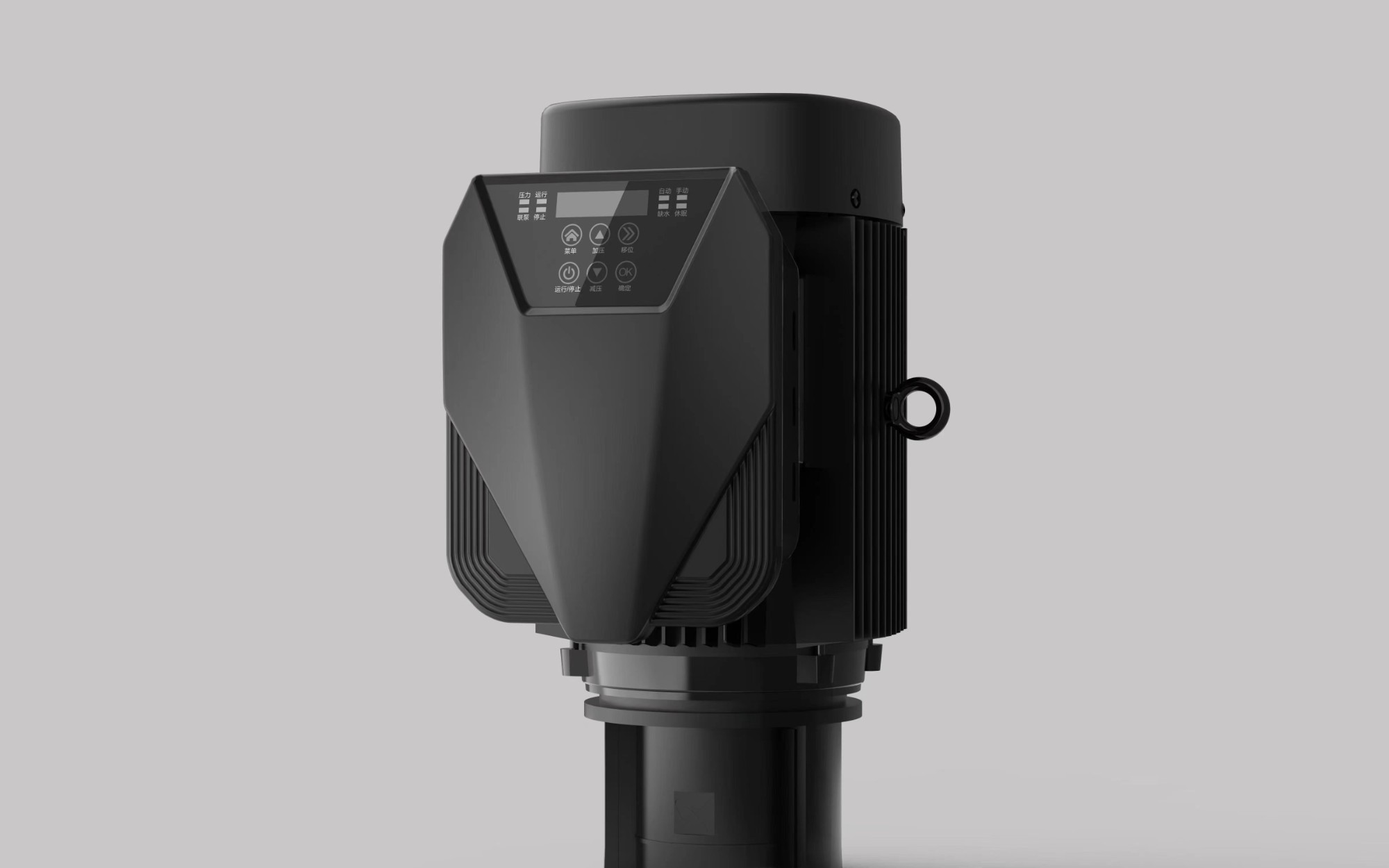

M820 IP54 Backpack pump inverters

M820 IP54 Backpack pump inverters

Product Item:
1,Pump motor protection for phase loss, overload, overvoltage, undervoltage, etc.
2,Double main pumps online, backpack installation
3,Automatic restart for incoming calls and water
4,Intelligent anti-freeze and anti-rust protection
5,Water shortage, burst pipe automatic shutdown
6,Compatible with permanent magnet synchronous and asynchronous,
one machine with two uses (the first in the industry)
  • Product Detail
  • FAQs

Ausenist   high performance IP54 smart M820 water pump drive. M820 drive is a single phase and three phase variable frequency drive that is designed specially to manage water pump's performance to match a wide range of water supply system conditions and requirments.
M820 drive allows your pump to work more efficiently,safely and smartly, reduce a large amount of energy consumption and prolong the lifetime of your pumps.
M820 drive is made of high quality components and materials and adopts the latest microprocessor technology


Product features:

1,Pump motor protection for phase loss, overload, overvoltage, undervoltage, etc.
2,Double main pumps online, backpack installation
3,Automatic restart for incoming calls and water
4,Intelligent anti-freeze and anti-rust protection
5,Water shortage, burst pipe automatic shutdown
6,Compatible with permanent magnet synchronous and asynchronous, one machine with two uses (the first in the industry)


Ausenist Single Phase 220V Two Wires Output Inverter Frequency Converter VFD for Water Pump
The host detects the pressure of the pipe network and sends it to the auxiliary machine, while automatically controlling the auxiliary machine operation stop and PID status according to the pressure condition.


The host machine detects the status of the auxiliary machine in real time and when the host machine fails, the standby host machine automatically becomes the host machine and when the auxiliary machine fails, it automatically skips the auxiliary machine and starts the next auxiliary machine. Ensure that the pump set can achieve automatic switching of the main and auxiliary.

The main and auxiliary engines can be run alternately at regular intervals and in sequence to achieve even use of the pumps and extend their life.

Industry leading dual main pump main auxiliary multi-pump system

Ausenist Single Phase 220V Two Wires Output Inverter Frequency Converter VFD for Water Pump

Product Parameters



Controlling
Characteristic
Control ModeV/F control
Starting Torque0.5Hz±100%
Speed Adjustable Range  1:100
Speed-holding precision±1.0%
Overload Capability150% rated current for 60s;180% rated
current for 1s
Acceleration/deceleration Time0.1-3600s
Input&Output
Parameters
Start Frequency0.01-10.00Hz
Input Voltage220VAC±15%,380V±15%
Input Frequency Range50/60Hz,fluctuation±5%
Output Voltage0-rated input voltage
Output Frequency0-200Hz
Peripheral InterfaceProgrammable Digital Input2 way of digital terminal input
Programmable Analog InputV: 0-5V
V (remote pressure gauge):0-10V
C(pressure transducer): 4-20mA
Replay Output1 way output,pragrammable
Basic FunctionsOpen Collection Output1 way output,pragammable
Command Running ChannelThree kinds of channels: 1.Operational
panel 2.Control terminal,3.Serial
communication port,choose 1 and 2 for
master drive and 3 for auxiliaries
Built-in PIDAdvanced PID arithmetic to realize closed
loop control system
Stall Speed ControlAutomatically limit current and voltage at
running period to prevent tripping due to
frequent overcurrent or overvoltage
Master and Auxiliaries connectionExtensible RS485 design,one drive in the system can be master and controls the other auxiliary drives (4 at most) to work by communication mode,
Master drive sends PID feedback information to the auxiliary drives and monitors status of auxiliaries inreal time.Any failure of the auxiliary drives does not affect the others.
Water Shortage ProtectionIf the drive detects the pipe pressure is lower than the water shortage pressure set value,the system stops working automatically.After set period time,it restarts automatically for specified times.If pressure restores to normal,system works normally,otherwise,system stops automatically in case of idle running of pump and prolongs pump lifetime to the maximum extent.
High Pressure AlarmWhen pressure exceeds set pressure,it stops running automatically to avoid damage on pipe network due to high pressure.
Automatic Energy-saving RunningAutomatically lower output voltage under light loading to save energy
Password Setting4-bit password can be set with non-zero numbers,Exit password setting interface and the password will be valide in 1 minute.
Parameters LockingDefine whether the parameter is locked in running or stopped status in case of misoperation.
Use ConditionInstallationInstallation should be executed under the conditions of no direct sunlight,dust,corrosive gas,inflammable gas,oil mist,steam and water drop.
AltitudeLower than 1000m,service in derated capacity above 1000m.Derate 1% capacity every 100m increase in temperature.
Environment Temperature -10ºC-+40ºC,service in derated capacity for 40ºC-50ºC.Derate 4% capacity every 1ºC increase in height.
Humidity≤95%RH,no water condensation.
Vibration<5.9m / S2(0.6G)


Ausenist Single Phase 220V Two Wires Output Inverter Frequency Converter VFD for Water Pump









Q: When will you arrange production?
A: We typically initiate production immediately upon receipt of your payment, provided the item is in stock. Otherwise, please consult with us to confirm the lead time.

Q: What is your accepted payment type?
A: We accept wire transfers, Paypal, Western Union, and Alibaba Trade Assurance. However, and Western Union, along with Alibaba Trade Assurance,

Q: Which logistic forwarders do you usually work with?
A: We collaborate with reputable logistics providers such as EMS, TNT, UPS, FedEx, and others. You also have the option to designate your own forwarder for shipment.

Q: What voltage range can you support?
A:

· Single 220V input, three-phase 220V output.

· Three-phase 220V input, three-phase 220V output.

· Three-phase 380V input, three-phase 380V output.

· Single-phase 380V input, three-phase 380V output.

· Single 220V input, three-phase 380V output.

· 220V/380V/480V/690V/1140V.

Q: How do you ensure product quality?
A: Our production strictly adheres to the ISO9001 quality control system. Following four rounds of quality inspection and high-temperature testing, we affix the "QA" pass label.

Q: Do you accept OEM business?
A: Yes, we gladly accept OEM and ODM projects with your authorization.

Q: Can I place a sample order?
A: Certainly, we encourage sample orders for quality testing. Mixed samples are also acceptable.

Q: What is the lead time?
A: Sample orders require 3-5 days, while mass production typically takes 1-2 weeks.

Q: Do you offer a guarantee for your products?
A: Yes, we provide an 18-month warranty.

Q: What is your return policy?
A: We accept returns within 30 days of delivery for items that are damaged or defective. Please contact our customer service team to initiate the return process.

Q: How can I track my order?
A: Once your order is shipped, you will receive a tracking number via email. You can use this number to track your shipment through the respective logistics provider's website.

Q: Are your products compliant with international standards?
A: Yes, our products are manufactured to meet or exceed international quality and safety standards. We ensure compliance with relevant regulations and certifications.

Q: Can I customize the specifications of a product?
A: Yes, we offer customization options for certain products. Please reach out to our sales team to discuss your specific requirements and receive a quote.

Q: What do I do if I encounter technical issues with a product?
A: In case of technical issues, please contact our technical support team. They will provide assistance, troubleshooting guidance, or arrange for necessary repairs or replacements.

Q: Is international shipping available?
A: Yes, we offer international shipping. Shipping costs and delivery times vary based on the destination. Please contact us for specific information regarding international shipments.



...
