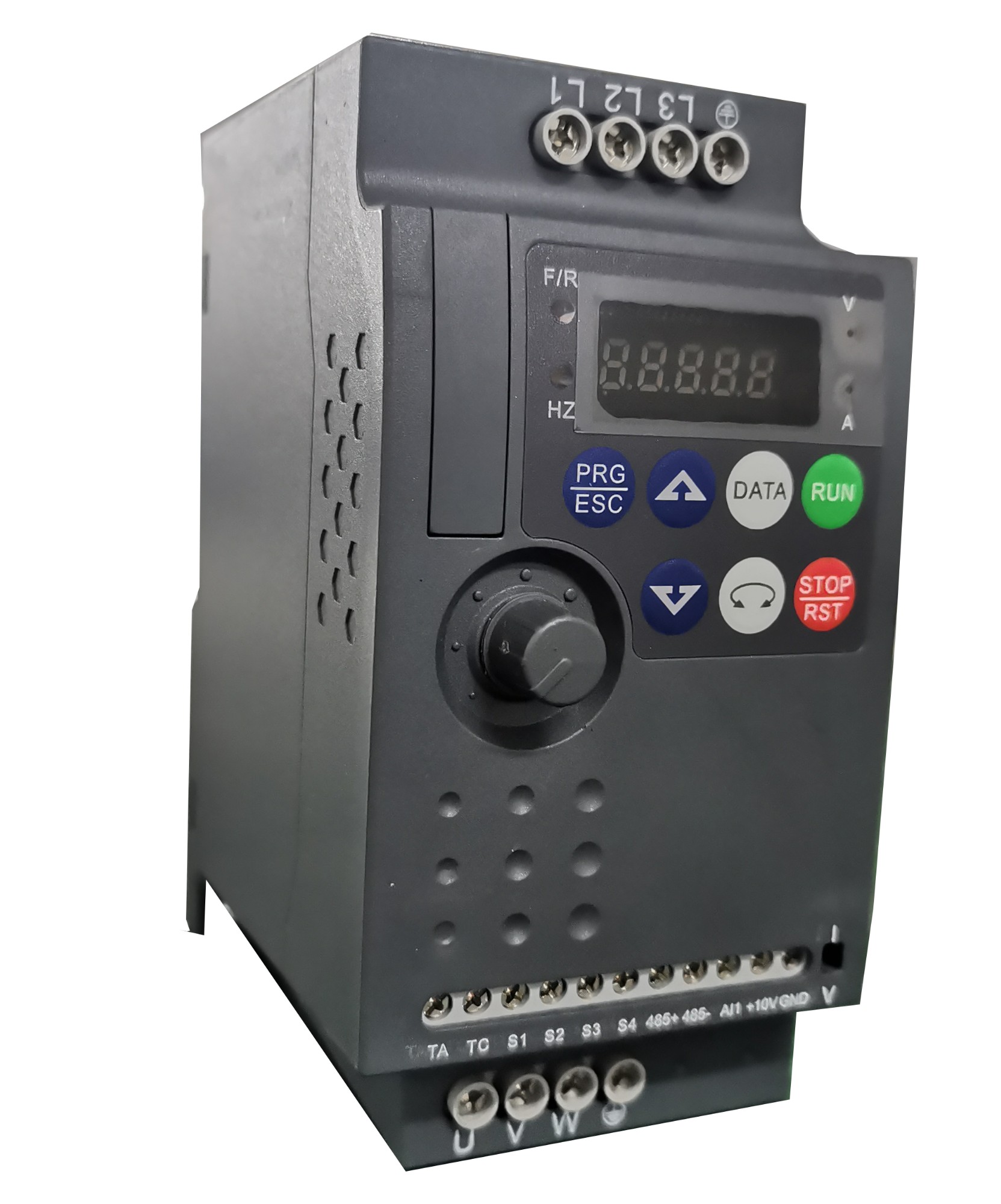

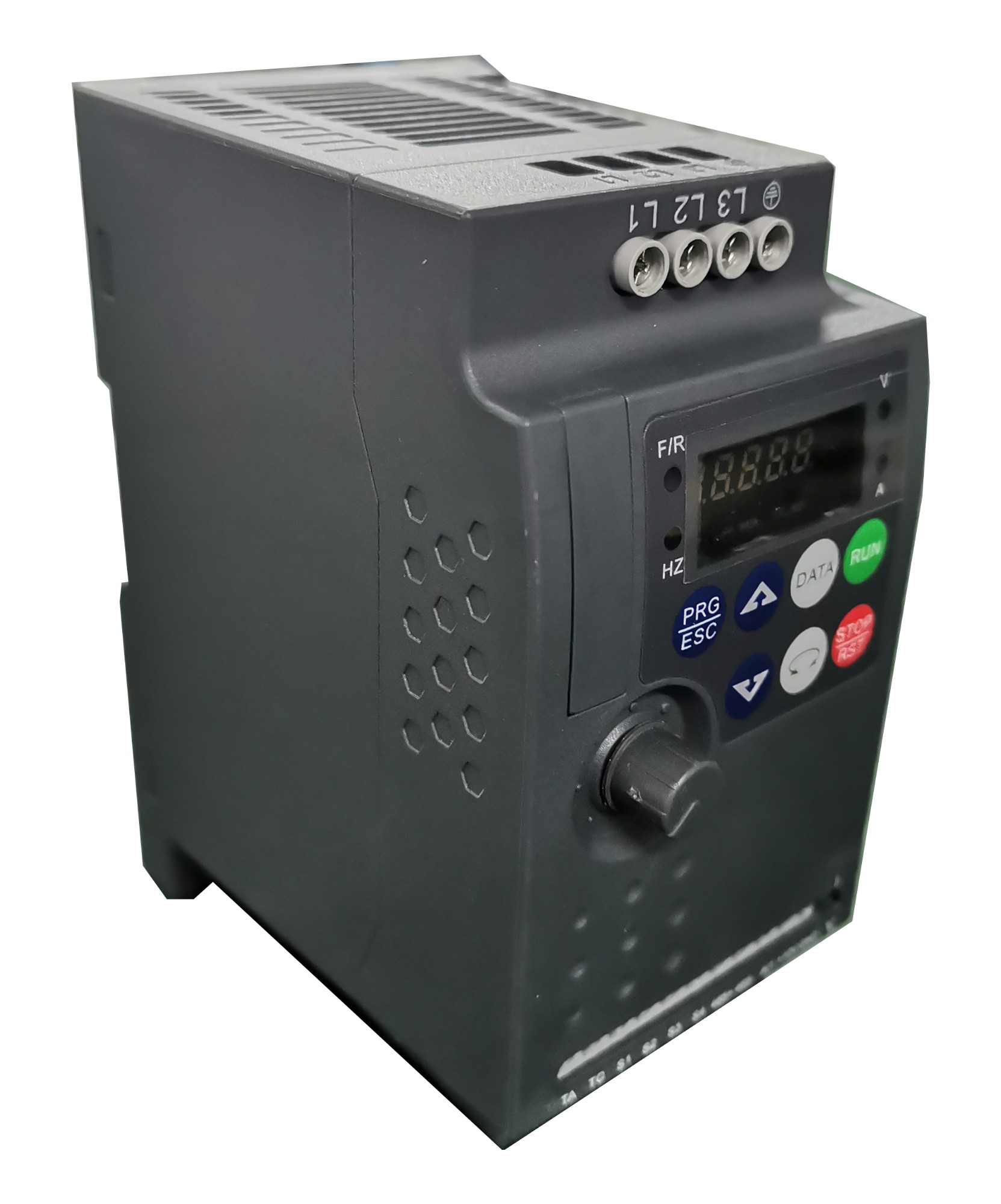

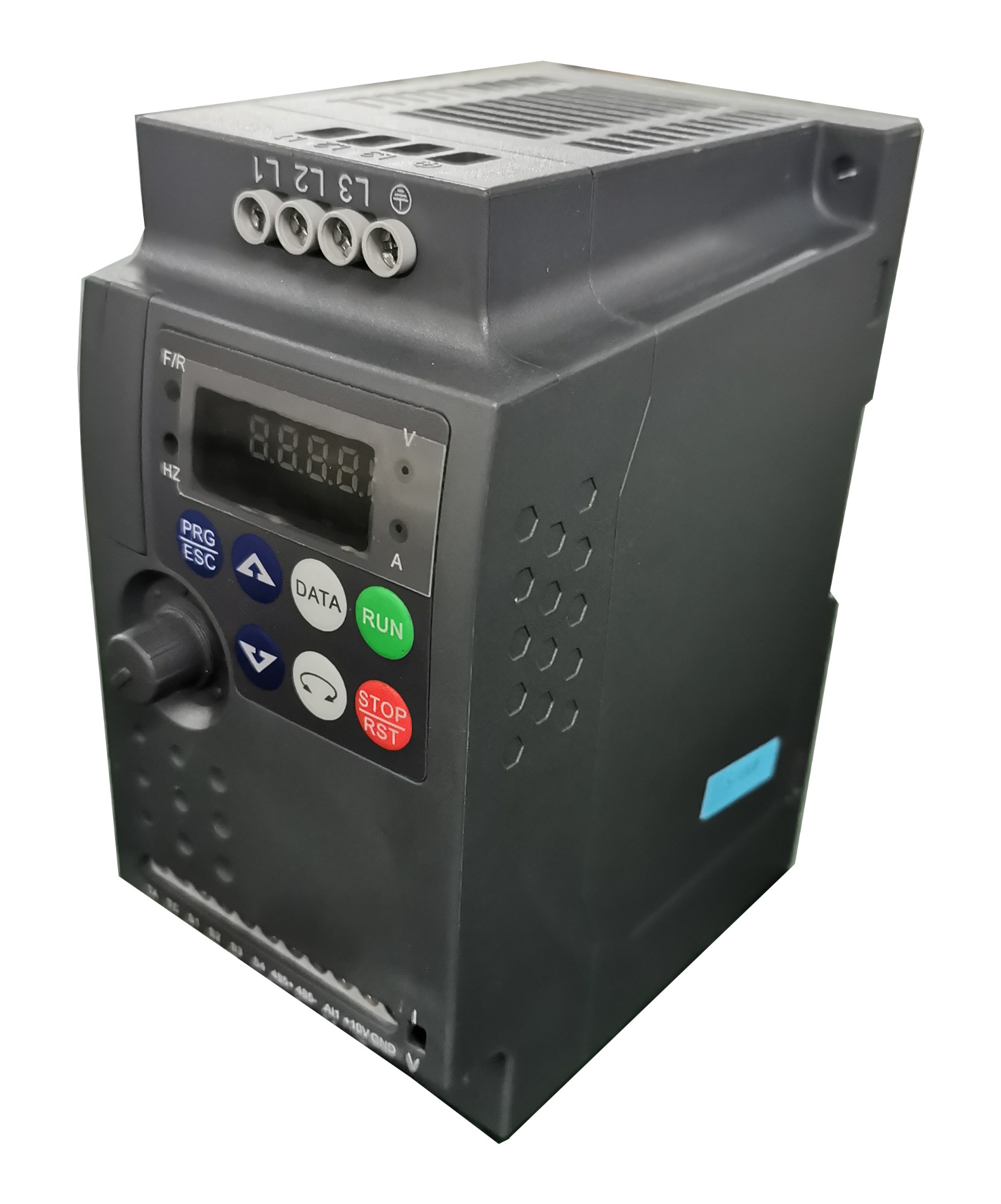

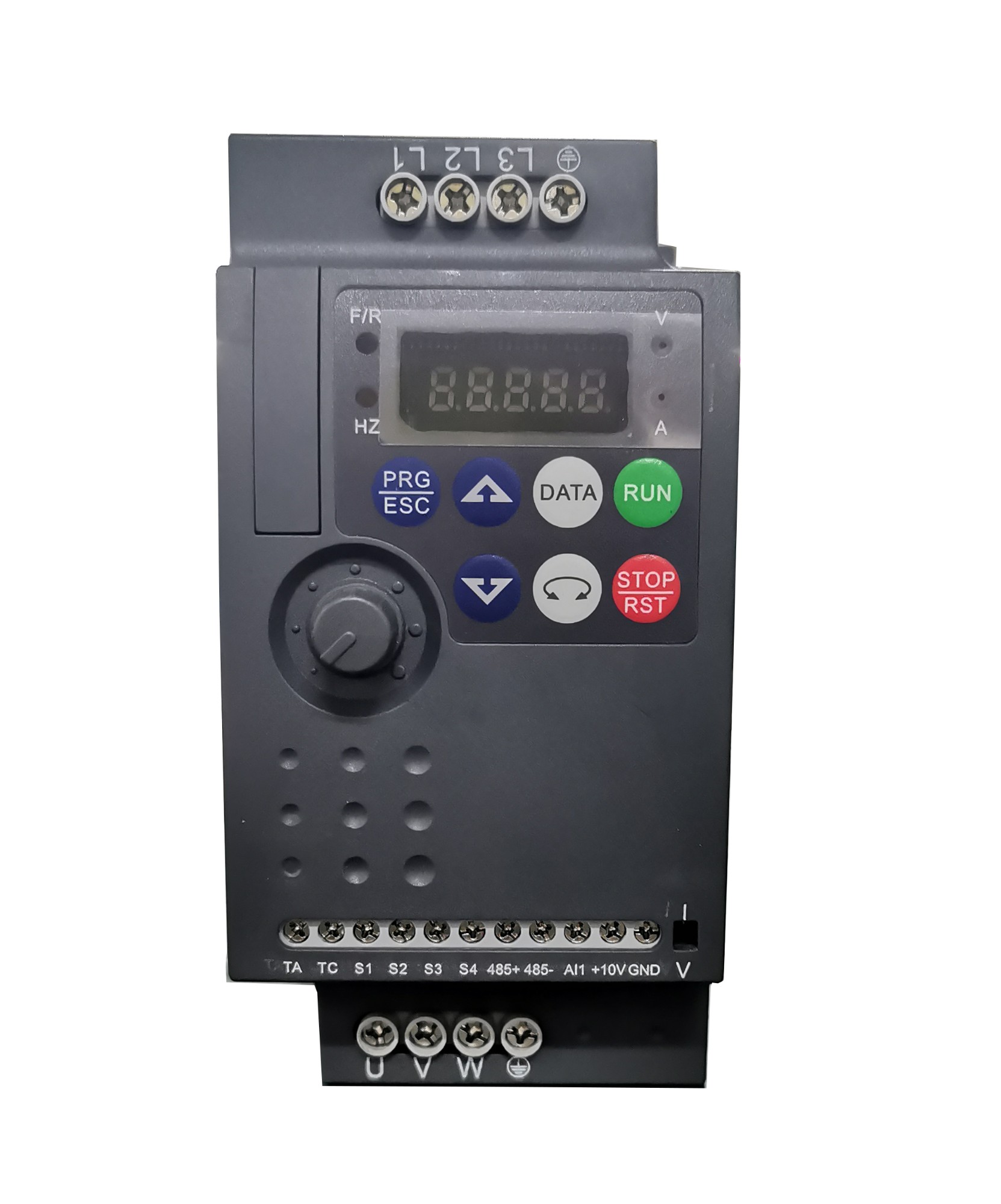

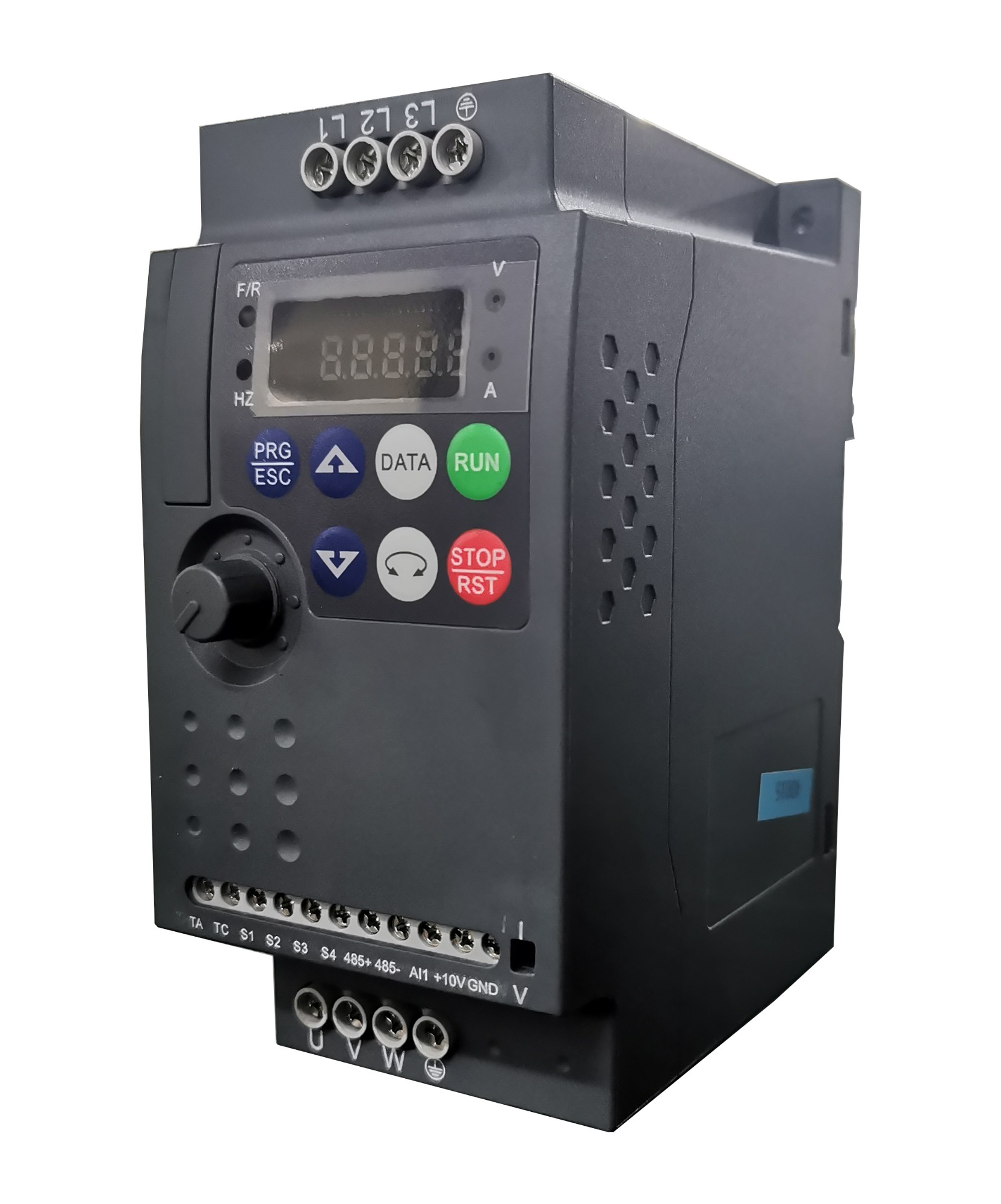

Ausenist EV200 series high-performance small inverters are the company's new generation of high-quality, high-reliability small inverters. Based on the market demand of low power, small size and simple speed regulation, single-phase 220VAC and three-phase 380VAC small inverters have been launched. It can be widely used in small automated machinery represented by wood carving, glass edging, food filling, medical centrifuges,automated production lines, electronic equipment, logistics equipment, textiles, etc.
Product features:
1.New narrow body design, compact structure layout, smart design, relative to the old product, the installation size is reduced by 30%, and the volume is reduced by 45%, which is more conducive to saving installation space and reducing power distribution costs;
2. Independent air ducts, straight up and down, efficient heat dissipation; can be installed side by side, reasonable use of installation space, greatly reducing the cost of power distribution cabinets;
3. 0.5Hz starting torque can reach 150%;
4.0.75-2.2kW without built-in braking unit, above 3.7kW with braking unit;
5. 4 digital input terminals, 1 analog input, 1 relay output;
6. The keyboard can be imported, compatible with the company's 510A, 510Hinverter keyboard interface.
| Model type | Power KVA | Input current A | Output current A | Matched motor kW |
| EV200-0004G-S2 | 1 | 5.4 | 2.3 | 0.4 |
| EV200-0007G-S2 | 1.5 | 8.2 | 4 | 0.75 |
| EV200-0015G-S2 | 3 | 14 | 7 | 1.5 |
| EV200-0022G-S2 | 4 | 23 | 9.6 | 2.2 |
| EV200-0007G-T4 | 1.5 | 3.4 | 2.1 | 0.75 |
| EV200-0015G-T4 | 3 | 5 | 3.8 | 1.5 |
| EV200-0022G-T4 | 4 | 5.8 | 5.1 | 2.2 |
| EV200-0037G-T4 | 5.9 | 10.5 | 9 | 3.7 |
| EV200-0055G-T4 | 8.9 | 14.6 | 13 | 5.5 |
| Item | Specification | ||
| Basic function | Highest frequency | Vector control: 0~500Hz; V/F control: 0~500Hz | |
| Carrier frequency | 0.8kHz ~ 12kHz Carrier frequency can be adjusted automatically according to temperature characteristics | ||
| Input frequency resolution | Digital setting: 0.01Hz Analog setting: maximum frequency × 0.025% | ||
| control mode | without PG Vector(SVC),Feedback vector(FVC) and V/F control | ||
| Start torque | G type: 0.5Hz/150%(SVC) ; 0Hz/180%(FVC) P type: 0.5Hz/100% | ||
| Speed range | 1: 100 (SVC) | 1: 1000 (FVC) | |
| Speed control accuracy | ±0.5% (SVC) | ±0.02%(FVC) | |
| Torque control accuracy | ±5%(FVC) | ||
| Overload capacity | G type: 150% rated current 60sec; 180% rated current 3sec P type: 120% rated current 60sec; 150% rated current 3sec | ||
| Toruqe boost | Auto-torque boost;manual torque boost 0.1%~30.0% | ||
| V/F curve | Three types:linear type; multi-point type; the N-th power of V/F curve | ||
| V/F Seperation | Two types:full seperation, half seperation | ||
| ACC/DEC curve | Linear or S curve of ACC/DEC ways.Four types of ACC/DEC Time, ACC/DEC time range is 0.0~6500.0s | ||
| DC brake | DC brake frequency: 0.00Hz~ max frequency,brake time:0.0s~36.0s,brake action current: 0.0%~100.0% | ||
| JOG Control | JOG frequency range: 0.00Hz~50.00Hz.JOG speed up/down time: 0.0s~6500.0. | ||
| Simple PLC,multi-stage speed running | Via built-in PLC or control terminal can realize max 16 stage speed running | ||
| Built-in PID | Can realize process control close-loop system conveniently | ||
| Auto-adjust voltage(AVR) | When grid voltage changes,can keep output voltage steadily automatically | ||
| Over current and over voltage speed control | During running,limit current and voltage automatically,protect from tripping off frequently for over voltage and over current. | ||
| Quick current-limit function | Reduce over current error on max extent,protect inverter normal running | ||
| Torque limitation and control | "digger"feature, inverter could limit torque automatically,prevent over current tripping off;close loop vector can realize torque control. | ||
| Outstanding perform<
Q: When will you arrange production?
Q: What is your accepted payment type?
Q: Which logistic forwarders do you usually work with?
Q: What voltage range can you support? · Single 220V input, three-phase 220V output. · Three-phase 220V input, three-phase 220V output. · Three-phase 380V input, three-phase 380V output. · Single-phase 380V input, three-phase 380V output. · Single 220V input, three-phase 380V output. · 220V/380V/480V/690V/1140V.
