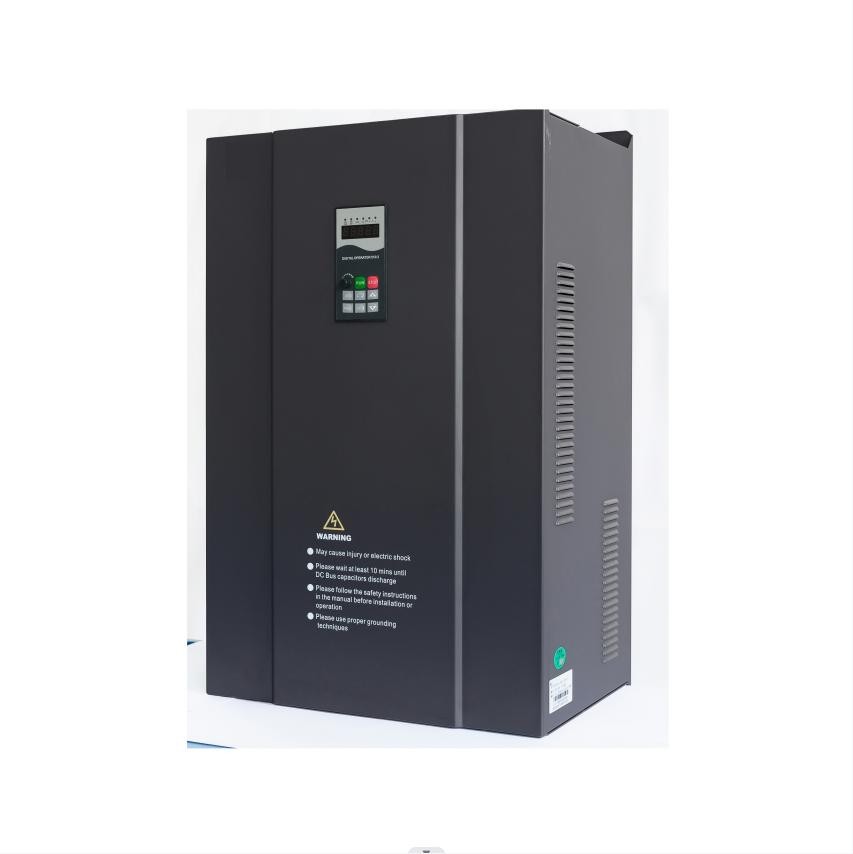

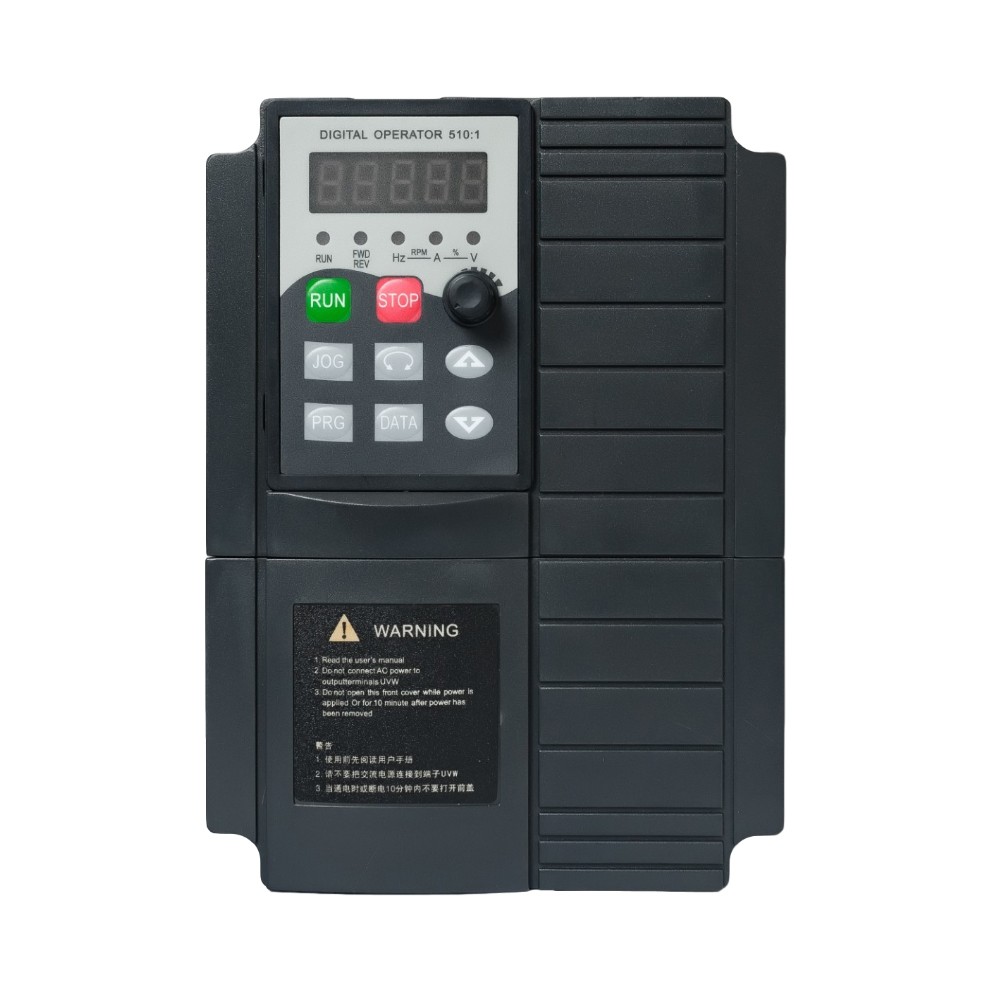

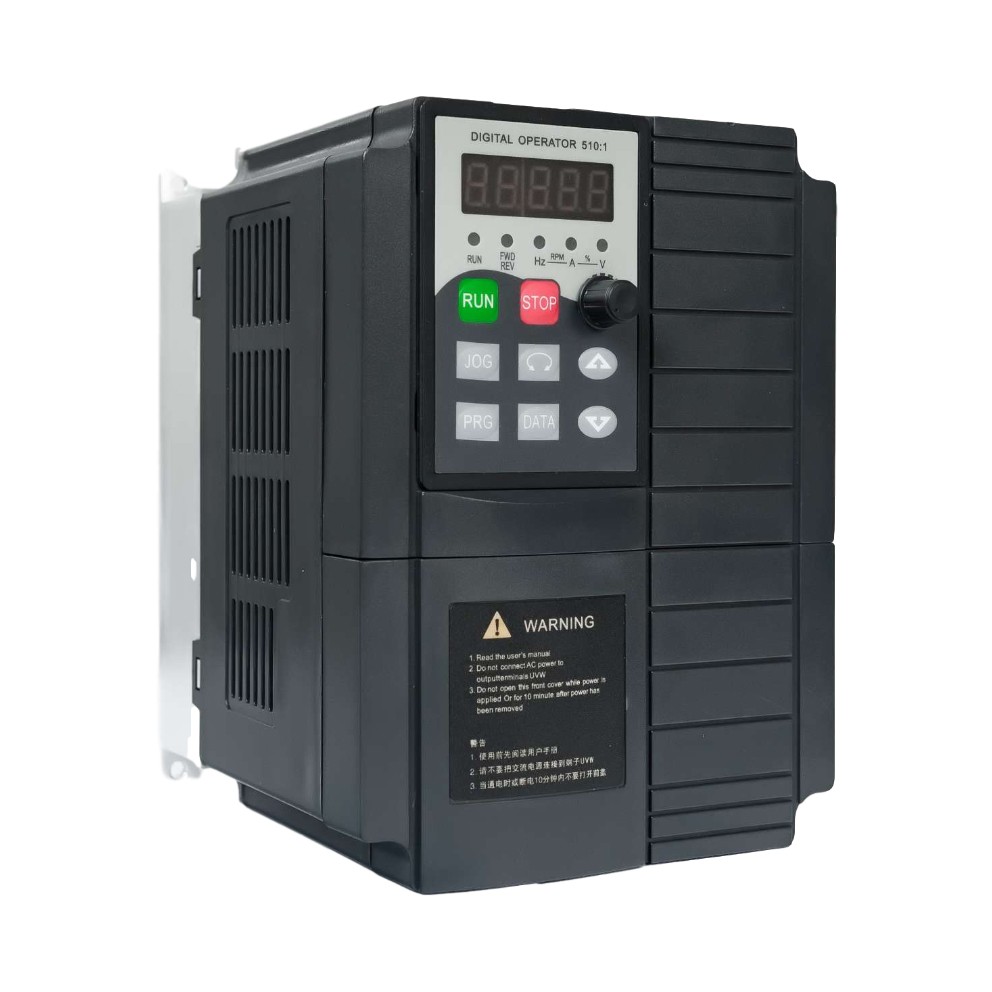

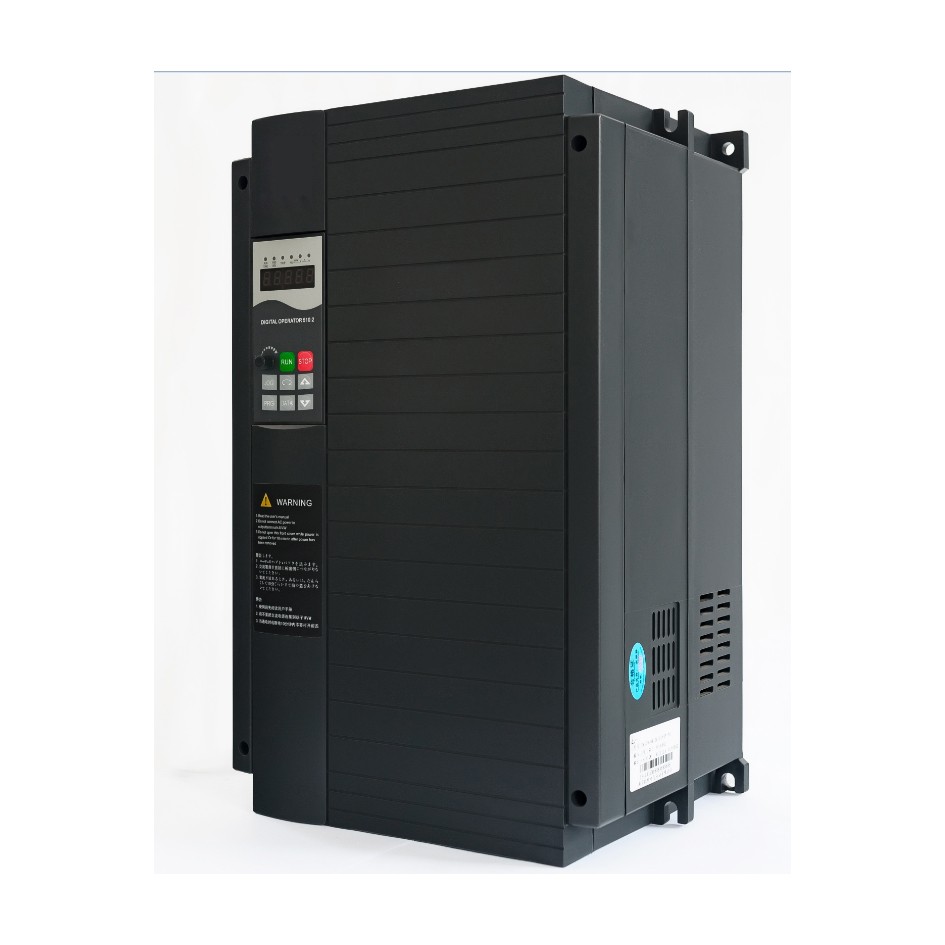

EV510 High performance frequency inverter

Product Item：

input voltage range: 380/220V±15%
input frequency range: 47~63Hz
output voltage range: 0~rated input voltage
output frequency range: 0~400Hz
Peripheral Interface Characteristics
Programmable digital input: 7 inputs
Programmable analog input: AI1: 0~10V input, AI2: 0~10V or 0~20mA input
Programmable open collector output: 1 output (open collector output or high-speed pulse output)
Relay output: 2 outputs
Analog output: 2 outputs, optional 0/4~20mA or 0~10V

Product Detail
FAQs

Ausenist EV510 series of high-performance vector inverter is a universal high-performance current vector inverter, mainly used to control and adjust the three-phase AC induction motor speed and torque, support a variety of PG card, powerful. Can be used for textile, paper, drawing, machine tools, packaging, food, fans, pumps and a variety of
automated production equipment drive.

Product features:

Power range :220V/380V/480V/690V/1140V
Support vector control, optional PG card, s closed-loop control, fully functional,
support three analog inputs (two current inputs), dual analog outputs, dual relay outputs,
larger size than the market, relatively good heat dissipation, more stable quality

Item	Specification
Basic Function	Maximum Frequency	Vector control: 0~500Hz; V/F control: 0~500Hz
	Carrier Frequency	0.8KHz~12KHz; the carrier frequency could automatically adjusted based on the load features.
	Input Frequency Resolution	Digital setting: 0.01Hz; Analog setting: maximum frequency × 0.025%
	Control Mode	Open-loop vector control (SVC); Closed-loop vector control (VC); V/F control
	Starting Torque	G type: 0.5Hz/150% (SVC); 0Hz/180% (FVC) P type: 0.5Hz/100%
	Speed Range	1:100 (SVC)	1:1000 (FVC)
	Steady Speed Precision	±0.5% (SVC)	±0.02% (FVC)
	Torque Control Precision	±5% (FVC)
	Overload Capacity	G type: 150% rated current 60s; 180% rated current 3s P type: 120% rated current 60s; 150% rated current 3s
	Torque Boost	Automatic torque boost; Manual torque boost 0.1%~30.0%
	V/F Curve	Linear type; Multi-point type; The Nth power of V/F curve (1.2th power, 1.4th power, 1.6th power, 1.8th power, 2th power)
	V/F Separation	Overall separation; Semi separation
	ACC/DEC Curve	Linear or S curve of ACC/DEC ways. Four types of ACC/DEC Time, ACC/DEC time range is 0.0~6500.0s.
	DC Brake	DC brake frequency: 0.00Hz~max. frequency Brake time: 0.0s~36.0s Brake action current: 0.0%~100.0%
	JOG Control	JOG frequency range: 0.00Hz~50.00Hz JOG ACC/DEC time: 0.0s~6500.0.s
	Simple PLC, multistage speed running	Via built-in PLC or control terminal can realize max. 16 stages speed running.
	Built-in PID	Can realize process control close-loop system conveniently.
	Auto Voltage Regulation (AVR)	It can keep constant output voltage automatically when the network voltage changes.
	Overcurrent and Overvoltage Speed Control	During running, limit current and voltage automatically, protect from tripping off frequently for over voltage and over current.
	Quick Current-limit Function	Reduce over current error on max extent, protect inverter normal running.
	Torque Limitation and Control	"Digger" feature, could limit torque automatically, prevent over current tripping off; closed-loop vector can realize torque control.
Personable Function	Outstanding Perform	using high-perform current vector control
	Instantaneous Stop Not Stop	during instant power-off, by motor feedback energy,inverter compensates voltage-drop to keep running for short time
	Quick Current-limit Function	reduce over current error on max extent
	Timing Control	timing control function: setting time range 0.0min~6500.0min
	Multi-motor Switch	2 sets of motor parameter, can realize 2 motors switching control.
	Multi-threaded Bus Support	RS485; CAN open; CAN link
	Multi-encoder Support	differential; open collector; rotary transformer
	Command Source	control panel; control terminal; communication can be switched by several modes
	Frequency Source	10 types: digital setting, analog voltage setting, analog current setting, pulse setting, communication setting, can be switched by several methods.
	Auxiliary Frequency Sources	10 types of auxiliary frequency source, can realize auxiliary frequency trimming, frequency combining flexibility.
Running	Input Terminal	Standard: 7 digital input terminals: one of them support max 100KHz high-speed pulse input; 3 analog input terminals: one support 0~10V voltage input only; one support 0~10V voltage or 0~20mA current input; one support -10~10V voltage input.
	Output Terminal	Standard: 1 high-speed pulse output terminal (optional open collector), support 0~100KHz pulse; 1 digit output terminal; 2 relay output terminals; 2 analog output terminals, one of them support 0~20mA current output.
Display and Keypad	LED Display	can display parameter
	Press-key Locking and Function Selection	Realize press-key partial or full locking, define part press-key function range, to avoid wrong operation.
	Protection Function	Motor short-circuit detection at power-on, input/output phase loss protection, overcurrent protection,overvoltage protection, undervoltage protection,overheat protection and overload protection.
	Optional Parts	Differential Input PG Card; Rotating Transformer PG Card; OC Input PG Card
Environment	Installation Location	Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt.
	Altitude	lower than 1000m (derated if higher than 1000m)
	Ambient Temperature	-10ºC~+40ºC (derated if the ambient temperature is between 40ºCand 50ºC)
	Humidity	less than 95%RH, without condensing

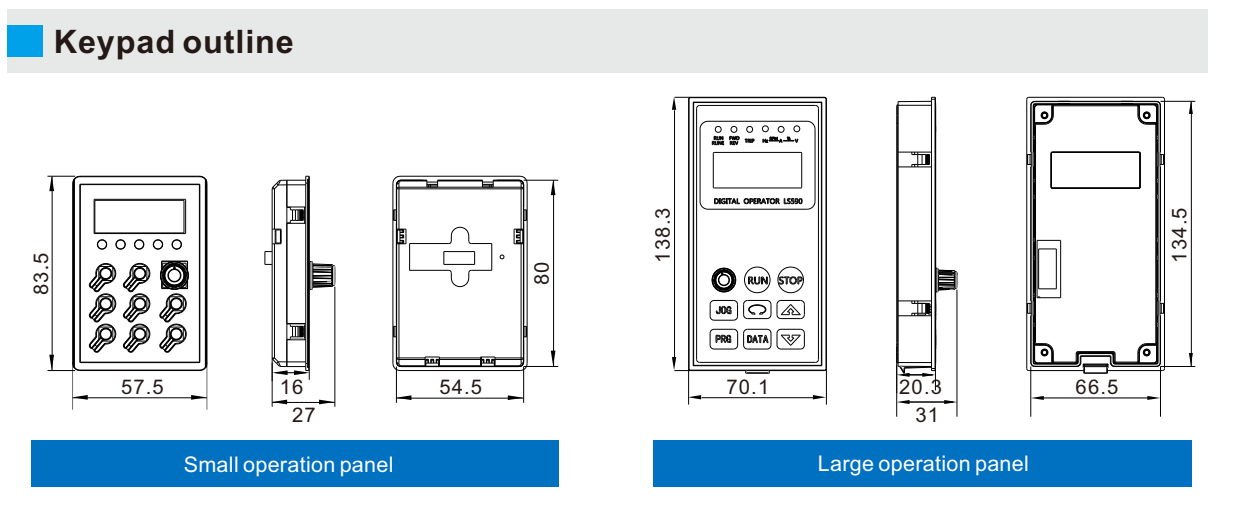

Optional	Double Screens Display LED Panel	LCD displays the operating panel; universal RJ45 interface
	LCD Panel	LCD displays the operating panel; could copy parameter

Model	Power Capacity (KVA)	Input Current (A)	Output Current (A)	Match Motor (KW)
Single-phase: 220V, 50/60Hz
EV510-0004G-S2	1	5.4	2.3	0.4
EV510-0007G-S2	1.5	8.2	4	0.75
EV510-0015G-S2	3	14	7	1.5
EV510-0022G-S2	4	23	9.6	2.2
Three-phase: 220V, 50/60Hz
EV510-0037G-T2	8.9	14.6	13	3.7
EV510-0055G-T2	17	26	25	5.5
EV510-0075G-T2	21	35	32	7.5
EV510-0110G-T2	30	46.5	45	11
EV510-0150G-T2	40	62	60	15
EV510-0185G-T2	57	76	75	18.5
EV510-0220G-T2	69	92	91	22
EV510-0300G-T2	85	113	112	30
EV510-0370G-T2	114	157	150	37
EV510-0450G-T2	134	180	176	45
EV510-0550G-T2	160	214	210	55
EV510-0750G-T2	231	307	304	75
Three-phase: 380V/480V, 50/60Hz
EV510-0007G-T4/T5	1.5	3.4	2.1	0.75
EV510-0015G-T4/T5	3	5	3.8	1.5
EV510-0022G-T4/T5	4	5.8	5.1	2.2
EV510-0037G/0055P-T4/T5	5.9	10.5	9	3.7
EV510-0055G/0075P-T4/T5	8.9	14.6	13	5.5
EV510-0075G/0110P-T4/T5	11	20.5	17	7.5
EV510-0110G/0150P-T4/T5	17	26	25	11
EV510-0150G/0185P-T4/T5	21	35	32	15
EV510-0185G/0220P-T4/T5	24	38.5	37	18.5
EV510-0220G/0300P-T4/T5	30	46.5	45	22
EV510-0300G/0370P-T4/T5	40	62	60	30
EV510-0370G/0450P-T4/T5	57	76	75	37
EV510-0450G/0550P-T4/T5	69	92	91	45
EV510-0550G/0750P-T4/T5	85	113	112	55
EV510-0750G/0900P-T4/T5	114	157	150	75
EV510-0900G/1100P-T4/T5	134	180	176	90
EV510-1100G/1320P-T4/T5	160	214	210	110
EV510-1320G/1600P-T4/T5	192	256	253	132
EV510-1600G/2000P-T4/T5	231	307	304	160
EV510-2000G/2200P-T4/T5	250	385	377	200
EV510-2200G/2500P-T4/T5	280	430	426	220
EV510-2500G/2800P-T4/T5	355	468	465	250
EV510-2800G/3150P-T4/T5	396	525	520	280
EV510-3150G/3550P-T4/T5	445	590	585	315
EV510-3550G-T4/T5	500	665	650	350
EV510-4000G-T4/T5	565	785	725	400
EV510-5000G-T4/T5	700	890	870	500
EV510-5600G-T4/T5	783	980	950	560
EV510-6300G-T4/T5	882	1180	1100	630
Three-phase: 690V, 50/60Hz
EV510-0550G-T6	84	70	65	55
EV510-0750G-T6	107	90	86	75
EV510-0900G-T6	125	105	100	90
EV510-1100G-T6	155	130	120	110
EV510-1320G-T6	192	170	150	132
EV510-1600G-T6	231	200	175	160
EV510-2000G-T6	250	235	215	200
EV510-2200G-T6	280	247	245	220
EV510-2500G-T6	355	265	260	250
EV510-2800G-T6	396	305	299	280
EV510-3150G-T6	445	350	330	315
EV510-3550G-T6	500	382	374	355
EV510-4000G-T6	565	435	410	400

Q: When will you arrange production?
A: We typically initiate production immediately upon receipt of your payment, provided the item is in stock. Otherwise, please consult with us to confirm the lead time.

Q: What is your accepted payment type?
A: We accept wire transfers, Paypal, Western Union, and Alibaba Trade Assurance. However, and Western Union, along with Alibaba Trade Assurance,

Q: Which logistic forwarders do you usually work with?
A: We collaborate with reputable logistics providers such as EMS, TNT, UPS, FedEx, and others. You also have the option to designate your own forwarder for shipment.

Q: What voltage range can you support?
A:

· Single 220V input, three-phase 220V output.

· Three-phase 220V input, three-phase 220V output.

· Three-phase 380V input, three-phase 380V output.

· Single-phase 380V input, three-phase 380V output.

· Single 220V input, three-phase 380V output.

· 220V/380V/480V/690V/1140V.

Q: How do you ensure product quality?
A: Our production strictly adheres to the ISO9001 quality control system. Following four rounds of quality inspection and high-temperature testing, we affix the "QA" pass label.

Q: Do you accept OEM business?
A: Yes, we gladly accept OEM and ODM projects with your authorization.

Q: Can I place a sample order?
A: Certainly, we encourage sample orders for quality testing. Mixed samples are also acceptable.

Q: What is the lead time?
A: Sample orders require 3-5 days, while mass production typically takes 1-2 weeks.

Q: Do you offer a guarantee for your products?
A: Yes, we provide an 18-month warranty.

Q: What is your return policy?
A: We accept returns within 30 days of delivery for items that are damaged or defective. Please contact our customer service team to initiate the return process.

Q: How can I track my order?
A: Once your order is shipped, you will receive a tracking number via email. You can use this number to track your shipment through the respective logistics provider's website.

Q: Are your products compliant with international standards?
A: Yes, our products are manufactured to meet or exceed international quality and safety standards. We ensure compliance with relevant regulations and certifications.

Q: Can I customize the specifications of a product?
A: Yes, we offer customization options for certain products. Please reach out to our sales team to discuss your specific requirements and receive a quote.

Q: What do I do if I encounter technical issues with a product?
A: In case of technical issues, please contact our technical support team. They will provide assistance, troubleshooting guidance, or arrange for necessary repairs or replacements.

Q: Is international shipping available?
A: Yes, we offer international shipping. Shipping costs and delivery times vary based on the destination. Please contact us for specific information regarding international shipments.

...
