4kW 220V VFD for a Reverse Osmosis Feed Pump in Mexico

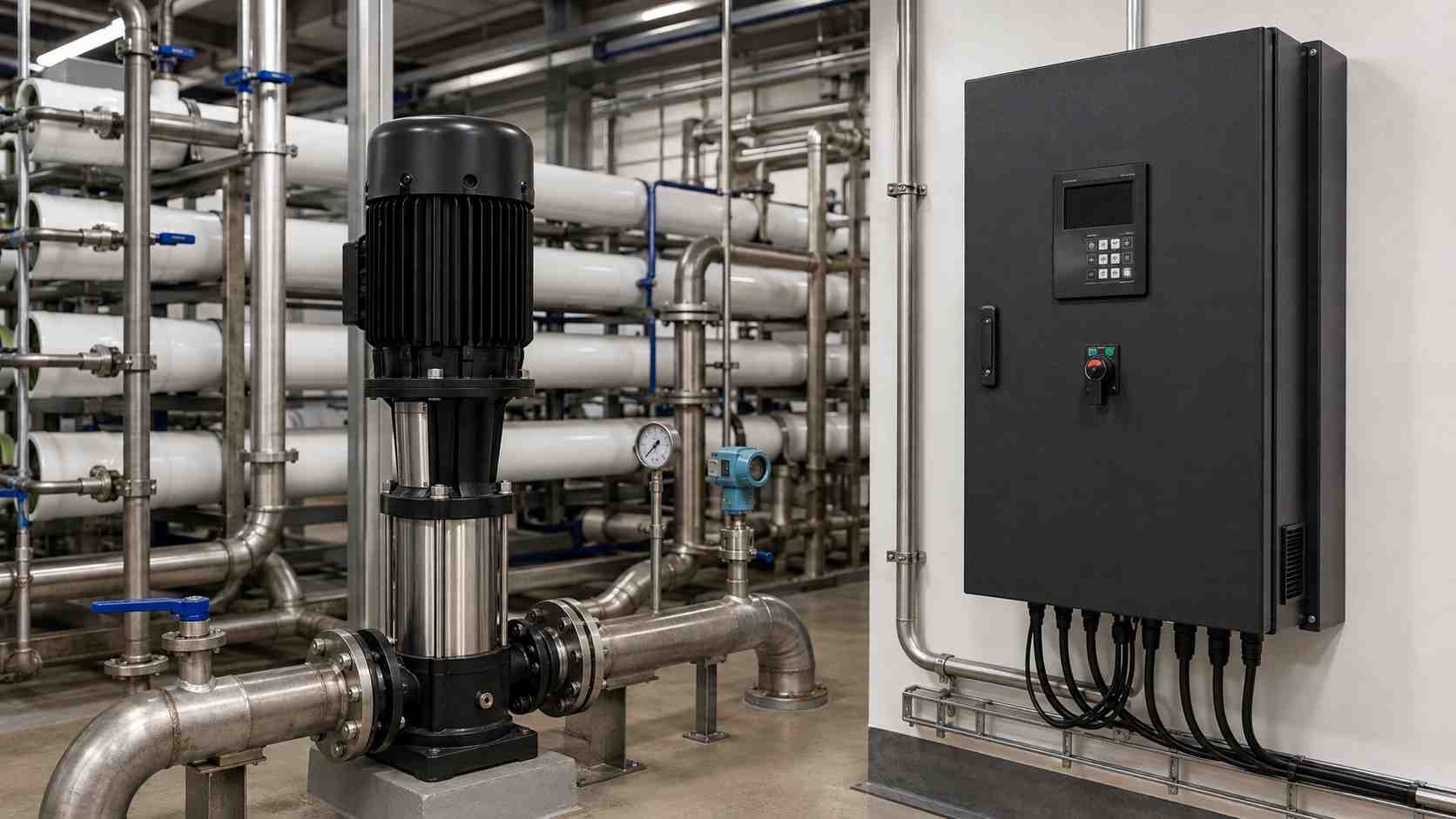

Application reference image for engineering context. It is not presented as the customer site photo.

Introduction

A water treatment contractor in Mexico needed a VFD for a 4kW reverse osmosis feed pump. The project required controlled pump speed so that feed pressure could be adjusted without relying only on throttling valves.

Based on the inquiry data available for this draft, AUSENIST recommended a 220V pump VFD configuration, with final selection subject to motor current and RO process confirmation. No verified running result was provided, so this article uses Expected Operating Behavior.

Project Overview

Item	Project Requirement
Country	Mexico
Customer Type	Water treatment contractor
Application	Reverse osmosis water treatment
Pump Type	RO feed pump
Motor Power	4kW
Motor Voltage	220V three-phase, subject to nameplate confirmation
Power Supply	220V supply, phase condition to be confirmed
Control Requirement	Controlled feed pressure
Pressure Sensor	Recommended if closed-loop pressure control is required
VFD Model	AUSENIST 220V pump VFD configuration
Control Method	PID pressure control or external speed reference

Customer Requirement

The contractor needed a pump VFD that could help control feed pressure before the RO membranes. The buyer wanted a solution that would be easier to adjust than fixed-speed pump operation with manual valve throttling.

The selection also had to avoid treating the VFD as a universal process controller. RO pressure limits, membrane protection, low-pressure interlocks and water treatment controls must still be handled by the complete system design.

Technical Challenge

An RO feed pump is sensitive because the pump does not operate alone. The membrane system has pressure limits and required operating conditions. A VFD can adjust pump speed, but it must not be used to exceed the membrane or piping limits.

The motor voltage also needs careful confirmation. If the power supply is 220V, the motor must be compatible with the VFD output voltage and phase configuration.

VFD Selection

Based on the information provided by the customer, the recommended direction is a 4kW 220V pump VFD matched to the motor rated current. AUSENIST should not finalize the model from power alone.

Before quotation, confirm:

• Motor rated voltage and current.
• Input supply phase and voltage range.
• Required feed pressure range.
• Pressure transmitter signal and measuring range.
• RO skid interlock signals and protection logic.

If the RO skid controller already manages process limits, the VFD may receive start/stop and speed reference from that controller. If the VFD manages pressure directly, the PID target and sensor scaling must be checked carefully.

Recommended Solution

Item	Recommended Configuration
VFD Model	AUSENIST 220V pump VFD configuration
Rated Power	4kW class, subject to motor current confirmation
Input	220V, phase condition to be confirmed
Output	According to compatible motor voltage
Control Mode	PID pressure control or external speed control
Pressure Feedback	Analog pressure transmitter if closed-loop control is needed
Optional Accessories	Pressure transmitter, panel terminals, interlock wiring, reactor if required

The VFD adjusts pump speed according to the command or pressure feedback. The RO skid protection system should still supervise low inlet pressure, high pressure, flow condition and emergency stop requirements.

System Operating Logic

RO feed pressure demand
↓
Pressure sensor or skid controller signal
↓
VFD speed adjustment
↓
Feed pump output changes
↓
RO system remains within confirmed pressure limits

Recommended Initial Parameters

Parameter	Recommended Setting
Motor Rated Power	Set according to 4kW motor nameplate
Motor Rated Voltage	Use actual motor nameplate value
Motor Rated Current	Use actual nameplate current
Maximum Frequency	Limited by pump and RO process requirement
Minimum Frequency	Confirm from pump curve and process stability
Acceleration Time	Set to avoid pressure shock
Deceleration Time	Set to avoid pressure shock and drive trips
PID Target	Use only after RO pressure limit is confirmed
Pressure Feedback	Match transmitter range and signal

Final settings should be adjusted according to the actual motor nameplate, pump curve and site conditions.

Expected Operating Behavior

The VFD is expected to provide smoother feed pump starting and adjustable pressure control. When used with a pressure transmitter or skid controller, the pump speed should follow the required feed pressure within the confirmed process limits.

No actual customer feedback or running data was provided, so no measured performance result is claimed.

Engineering Notes

• Confirm RO membrane pressure limits before setting the maximum speed or PID target.
• Check motor rated current and voltage connection before selecting the VFD.
• Pressure transmitter range should match the feed pressure range.
• Keep VFD control logic coordinated with RO skid interlocks.
• Do not rely on the VFD alone for complete membrane protection.

FAQ

Can a VFD be used on an RO feed pump?

Yes, if the VFD is matched to the motor and the RO process limits are respected. Pressure protection and interlocks must be confirmed.

Can the VFD control RO pressure directly?

It can if a compatible pressure transmitter is used and the PID target is set within safe process limits.

Is 220V input enough for a 4kW pump?

It depends on the exact supply phase, motor voltage and motor current. The motor nameplate must be checked before selection.

Have a Similar Pump Application?

If you are selecting a VFD for a water treatment pump, send us the motor nameplate, power supply, pump type, required pressure, sensor information and skid control requirement.

AUSENIST can recommend the appropriate VFD model and control configuration.
