18.5kW 400V VFD for an Industrial Cooling Water Pump in Malaysia

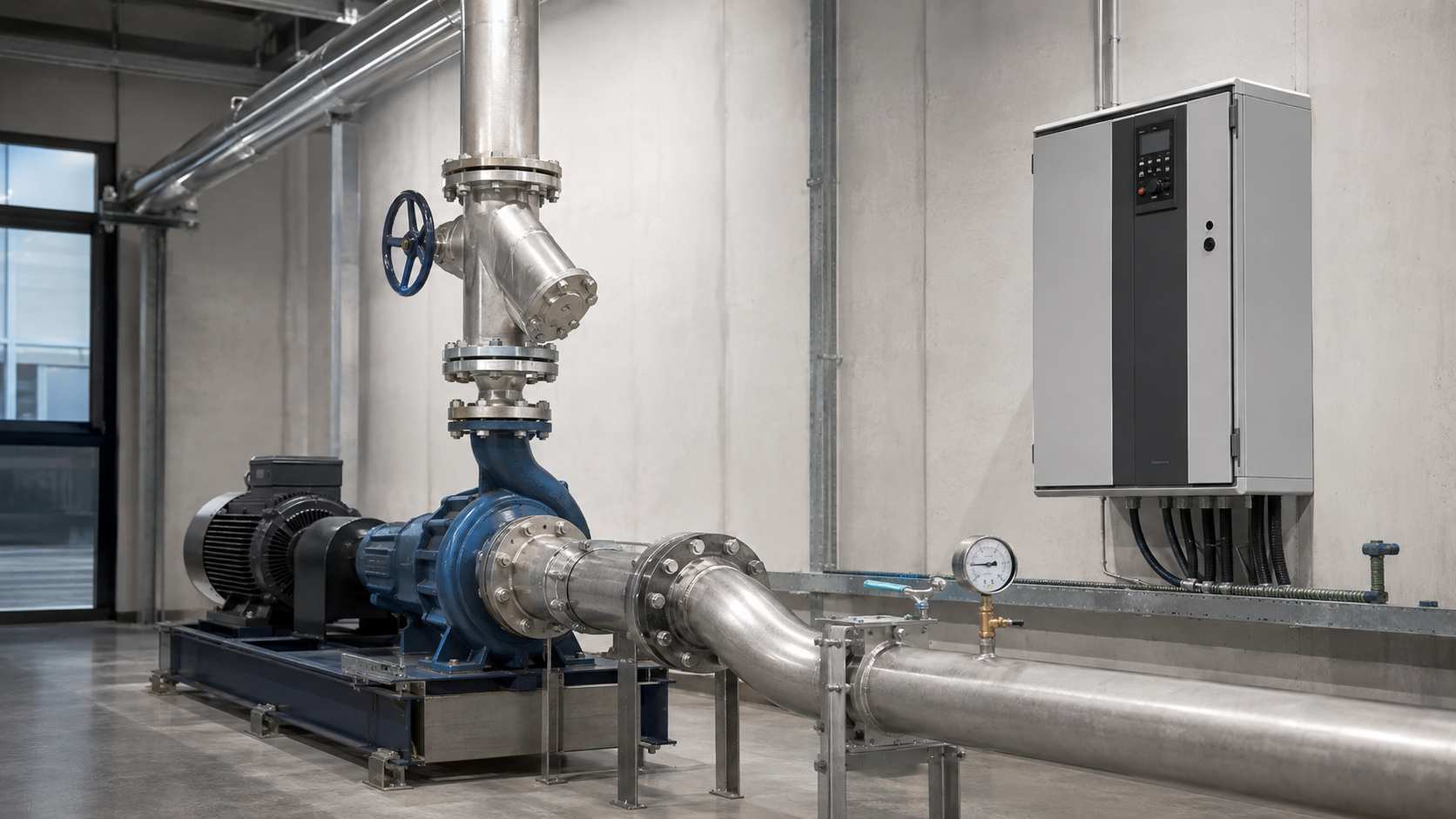

Application reference image for engineering context. It is not presented as the customer site photo.

Introduction

A system integrator in Malaysia needed a VFD selection for an 18.5kW cooling water pump used in an industrial utility system. The pump was expected to operate for long periods, so the selection had to consider continuous duty, motor current and stable speed control.

Based on the inquiry data available for this draft, AUSENIST recommended a 400V pump VFD configuration subject to confirmation of the actual motor nameplate. Because no verified operating data was provided, this article describes the expected operating behavior rather than a measured project result.

Project Overview

Item	Project Requirement
Country	Malaysia
Customer Type	System integrator
Application	Industrial cooling water circulation
Pump Type	Centrifugal cooling water pump
Motor Power	18.5kW
Motor Voltage	400V three-phase
Power Supply	400V three-phase
Control Requirement	Variable-speed cooling water flow control
VFD Model	AUSENIST pump VFD, project-specific 400V configuration
Control Method	External control or PID feedback according to system design

Customer Requirement

The customer needed a pump inverter that could reduce mechanical shock during starting and allow cooling water flow to match process demand. In this type of application, the drive must be selected for dependable operation instead of only matching the motor kW.

The customer also needed a clear selection basis for quotation, including what data should be checked before the VFD model is finalized.

Technical Challenge

Cooling water pumps often run continuously or for long duty cycles. A VFD selected too close to the motor current limit may overheat or trip when cabinet ventilation, ambient temperature or supply quality is poor.

The pump load is usually centrifugal, but the system pressure, valve position and required flow range still affect the operating current. If the pump is required to run near maximum frequency for long periods, the VFD thermal margin and enclosure cooling must be reviewed.

VFD Selection

Based on the information provided by the customer, the recommended direction is a 400V pump VFD matched to an 18.5kW motor. Final selection should be made from the motor rated current and the real cooling water duty.

Before ordering, AUSENIST should confirm:

• Motor rated current, voltage and frequency.
• Normal and maximum required pump speed.
• Whether control comes from terminals, PLC, pressure feedback or flow feedback.
• Cabinet ventilation and ambient temperature.
• Motor cable length and grounding arrangement.

If the motor current or site temperature leaves little margin, the final configuration may require a higher-rated drive or additional panel cooling.

Recommended Solution

Item	Recommended Configuration
VFD Model	AUSENIST 400V pump VFD configuration
Rated Power	18.5kW class, subject to motor current confirmation
Input	400V three-phase
Output	400V three-phase
Control Mode	External speed reference or PID control
Feedback	Pressure, differential pressure or flow signal if required
Optional Accessories	Input reactor, output reactor, panel cooling or communication module as required

The drive can receive a start command and speed reference from the plant control system. If feedback control is used, the VFD adjusts motor frequency to maintain the required pressure or flow condition.

System Operating Logic

Process cooling demand changes
↓
Control signal or feedback reaches the VFD
↓
VFD adjusts pump motor frequency
↓
Cooling water flow changes
↓
System operates closer to the required demand

Recommended Initial Parameters

Parameter	Recommended Setting
Motor Rated Power	Set according to 18.5kW motor nameplate
Motor Rated Voltage	400V
Motor Rated Current	Set according to actual nameplate
Maximum Frequency	According to motor and pump rating
Minimum Frequency	Confirm from pump curve and cooling demand
Acceleration Time	Set to reduce pipe and mechanical shock
Deceleration Time	Adjust to avoid pressure shock and overvoltage trips
Control Source	PLC, terminal, keypad or feedback loop as designed

Final settings should be adjusted according to the actual motor nameplate, pump curve and site conditions.

Expected Operating Behavior

The VFD is expected to start the cooling water pump smoothly and adjust pump speed according to the control requirement. If feedback control is used, the system should respond to cooling demand without forcing the pump to run at full speed at all times.

No measured energy-saving percentage, running hours or customer feedback is included because no verified operating data was provided.

Engineering Notes

• Check motor rated current before confirming the 18.5kW VFD selection.
• Review cabinet ventilation for continuous-duty operation.
• Confirm whether the system needs pressure, differential pressure or flow feedback.
• Long motor cables may require output-side review.
• Do not set minimum frequency below the useful hydraulic range of the pump.

FAQ

Can an 18.5kW cooling water pump use an 18.5kW VFD?

It may be suitable if the VFD output current matches the motor rated current and the duty is within the drive capability. The nameplate current must be checked.

Is PID required for a cooling water pump VFD?

Not always. Some systems use PLC speed reference. PID is useful when the VFD must maintain pressure, differential pressure or flow automatically.

Does continuous operation affect VFD selection?

Yes. Cabinet ventilation, ambient temperature, load current and duty cycle should be reviewed for long-running cooling systems.

Have a Similar Pump Application?

If you are selecting a VFD for a centrifugal pump, booster pump, irrigation pump or constant-pressure water system, send us the motor nameplate, pump type, power supply, control requirement and site conditions.

AUSENIST can recommend the appropriate VFD model and control configuration.
