7.5kW 415V VFD for a Greenhouse Irrigation Pump in the UAE

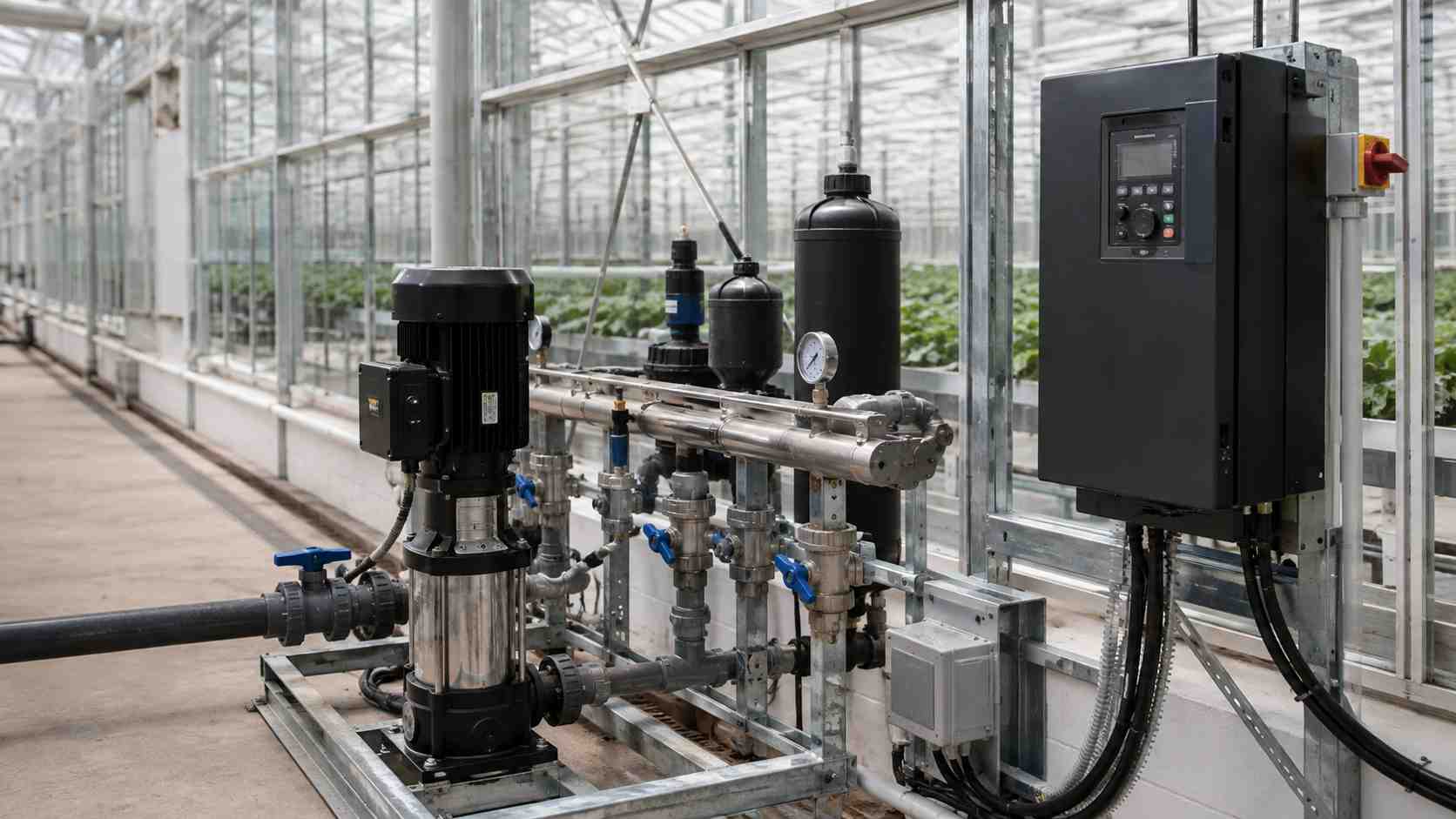

Application reference image for engineering context. It is not presented as the customer site photo.

Introduction

A greenhouse irrigation contractor in the UAE needed a VFD solution for a 7.5kW irrigation pump using a 415V three-phase supply. The system served changing irrigation zones, so the pump needed controlled speed rather than fixed full-speed operation.

Based on the inquiry data available for this draft, AUSENIST recommended a 415V pump VFD configuration with pressure feedback if constant pressure is required. The exact model must be confirmed by motor current, supply tolerance and site conditions.

Project Overview

Item	Project Requirement
Country	UAE
Customer Type	Greenhouse irrigation contractor
Application	Greenhouse irrigation water supply
Pump Type	Irrigation pump
Motor Power	7.5kW
Motor Voltage	415V three-phase
Power Supply	415V three-phase
Control Requirement	Variable-speed operation for changing irrigation zones
Pressure Sensor	Recommended for constant pressure
VFD Model	AUSENIST pump VFD, project-specific 415V configuration
Control Method	PID pressure control or external speed reference

Customer Requirement

The contractor needed the pump to respond to changing water demand as different irrigation zones opened and closed. The buyer also wanted a clear selection basis because 415V supply and greenhouse conditions needed confirmation before ordering.

For this case, the main requirement was stable irrigation pressure without forcing the pump to run at maximum frequency when demand was lower.

Technical Challenge

Greenhouse irrigation systems can have frequent demand changes. Different zones may have different pipe lengths, emitter counts and pressure requirements. If the PID target is not matched to the real system, the pump may hunt or run at excessive speed.

The site environment also matters. Heat, humidity, cabinet ventilation and dust protection should be reviewed before finalizing the VFD installation.

VFD Selection

Based on the information provided by the customer, the recommended direction is a 7.5kW 415V pump VFD matched to the motor rated current. If 415V is a special-voltage requirement for the selected model, it must be confirmed before quotation.

AUSENIST should review:

• Motor rated voltage and current.
• Supply voltage range and phase condition.
• Irrigation zone pressure requirement.
• Pressure transmitter range and signal.
• Ambient temperature, humidity and cabinet ventilation.

If the system is controlled by a fertigation controller or PLC, the VFD may receive start/stop and speed reference externally instead of using internal PID.

Recommended Solution

Item	Recommended Configuration
VFD Model	AUSENIST 415V pump VFD configuration, subject to confirmation
Rated Power	7.5kW class, subject to motor current confirmation
Input	415V three-phase
Output	415V three-phase
Control Mode	PID pressure control or external speed reference
Pressure Feedback	Analog pressure transmitter if constant pressure is required
Optional Accessories	Pressure sensor, control terminals, enclosure cooling or reactor if required

The VFD adjusts motor speed according to pressure feedback or controller signal. As irrigation zones change, the pump speed should change within the confirmed hydraulic range.

System Operating Logic

Irrigation zone demand changes
↓
Pressure sensor or controller signal
↓
VFD adjusts motor frequency
↓
Pump speed changes
↓
Irrigation pressure follows system demand

Recommended Initial Parameters

Parameter	Recommended Setting
Motor Rated Power	7.5kW
Motor Rated Voltage	415V
Motor Rated Current	Set according to actual nameplate
Maximum Frequency	According to motor and pump rating
Minimum Frequency	Confirm from pump curve and irrigation requirement
Acceleration Time	Set to reduce pipe shock
Deceleration Time	Set to avoid water hammer
PID Target	Set only after required pressure is confirmed
Pressure Feedback	Match transmitter range and signal

Final settings should be adjusted according to the actual motor nameplate, pump curve and site conditions.

Expected Operating Behavior

The VFD is expected to let the greenhouse irrigation pump adjust speed as zone demand changes. With pressure feedback, the system should maintain the selected pressure more consistently than fixed-speed operation.

No verified running data was provided, so this article does not state a measured energy-saving percentage or field result.

Engineering Notes

• Confirm whether 415V is supported by the exact selected configuration.
• Use motor rated current for final selection.
• Select a pressure transmitter range that matches actual irrigation pressure.
• Review heat and ventilation for greenhouse service areas.
• Coordinate VFD control with any fertigation or irrigation controller.

FAQ

Can a VFD control greenhouse irrigation pressure?

Yes, if a suitable pressure sensor is used and the PID settings are commissioned according to the irrigation zones.

Is 415V different from 380V for VFD selection?

It can be. The exact input and output voltage rating must be confirmed for the selected VFD and motor.

Does every irrigation pump need PID?

No. Some systems use external controller speed reference. PID is needed when the VFD directly maintains pressure.

Have a Similar Pump Application?

If you are selecting a VFD for greenhouse irrigation, send us the motor nameplate, supply voltage, zone pressure, sensor information and control method.

AUSENIST can recommend the appropriate VFD model and control configuration.
