3kW 220V VFD for a Swimming Pool Filtration Pump in Vietnam

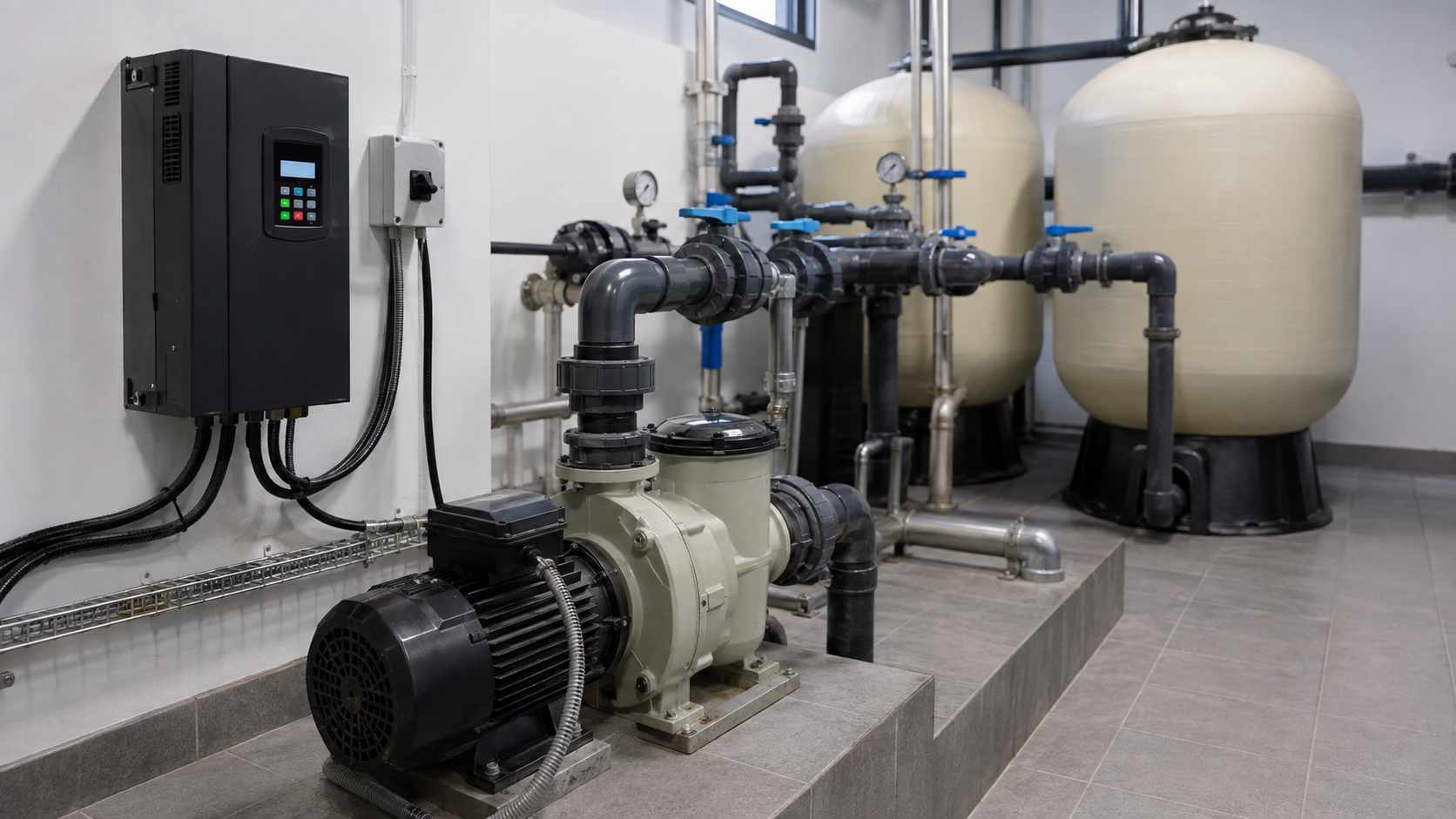

Application reference image for engineering context. It is not presented as the customer site photo.

Introduction

A pool equipment contractor in Vietnam needed a VFD for a 3kW filtration pump. The goal was to reduce hard starting and allow variable-speed operation for filtration schedules without changing the complete pool hydraulic system.

Based on the inquiry data available for this draft, AUSENIST recommended a 220V pump VFD configuration, subject to motor voltage and current confirmation. No verified running data was provided, so the article explains the expected operating behavior.

Project Overview

Item	Project Requirement
Country	Vietnam
Customer Type	Pool equipment contractor
Application	Swimming pool filtration
Pump Type	Pool filtration pump
Motor Power	3kW
Motor Voltage	220V, subject to motor nameplate confirmation
Power Supply	220V supply, phase condition to be confirmed
Control Requirement	Variable-speed filtration pump control
VFD Model	AUSENIST 220V pump VFD configuration
Control Method	Manual speed, timer control or external signal

Customer Requirement

The customer needed a VFD that could start the filtration pump smoothly and allow lower-speed operation during selected filtration periods. The buyer wanted a practical pump inverter selection instead of a full custom control panel.

The main technical question was whether the 220V power supply and 3kW pump motor were compatible with the selected VFD input and output ratings.

Technical Challenge

Pool filtration pumps are often operated by schedules. The VFD must be coordinated with the timer, filter backwash procedure and minimum flow requirement. Running too slowly may reduce filtration performance or affect heater, chlorination or circulation equipment.

Motor compatibility is also important. A single-phase pool motor cannot always be treated the same as a three-phase induction motor. The motor nameplate and wiring must be checked before selection.

VFD Selection

Based on the information provided by the customer, the recommended direction is a 3kW 220V pump VFD matched to the motor rated current and voltage. The final model should not be selected from power alone.

AUSENIST should confirm:

• Motor type and phase.
• Motor rated voltage and current.
• Supply voltage and phase condition.
• Required filtration speed range.
• Timer, external switch or automation signal.
• Whether minimum flow protection is required.

If the motor is not compatible with VFD operation, the pump package may require a different motor or a separately reviewed solution.

Recommended Solution

Item	Recommended Configuration
VFD Model	AUSENIST 220V pump VFD configuration
Rated Power	3kW class, subject to motor current confirmation
Input	220V, phase condition to be confirmed
Output	According to compatible motor voltage and phase
Control Mode	Manual speed, timer control or external signal
Feedback	Not required unless pressure or flow control is added
Optional Accessories	External switch, timer interface, panel protection or pressure signal if required

The VFD can run the pump at different speeds according to the operating schedule. For example, the system may use a higher speed for backwash or peak circulation and a lower speed for normal filtration, if the pump and pool hydraulics allow it.

System Operating Logic

Timer or operator command
↓
VFD start and speed command
↓
Pump motor accelerates smoothly
↓
Filtration flow follows selected speed
↓
System operates within confirmed minimum flow limits

Recommended Initial Parameters

Parameter	Recommended Setting
Motor Rated Power	3kW
Motor Rated Voltage	Set according to actual nameplate
Motor Rated Current	Set according to actual nameplate
Maximum Frequency	According to motor and pump rating
Minimum Frequency	Confirm from filtration and cooling requirement
Acceleration Time	Set for smooth starting
Deceleration Time	Set for smooth stopping
Control Source	Keypad, timer, terminals or external control as designed

Final settings should be adjusted according to the actual motor nameplate, pump curve and site conditions.

Expected Operating Behavior

The VFD is expected to reduce starting shock and allow the filtration pump to run at selected speeds. It should not be used to reduce speed below the minimum flow required by the filtration system or connected pool equipment.

No verified customer feedback, operating hours or energy-saving percentage was provided for this draft.

Engineering Notes

• Confirm whether the motor is single-phase or three-phase before selecting the VFD.
• Check rated current, not only 3kW motor power.
• Minimum frequency must consider filtration flow and motor cooling.
• Coordinate the VFD with timer and backwash operation.
• Keep the VFD protected from moisture and pool chemical exposure.

FAQ

Can a pool filtration pump use a VFD?

Yes, if the motor is compatible and the filtration system can operate safely at the selected speed range.

Can the VFD be connected to a pool timer?

It may be controlled by terminals or an external signal if the selected model and panel design support it.

Can a VFD reduce pool pump energy use?

Lower-speed operation can reduce unnecessary full-speed running, but the actual saving depends on duty cycle, pump curve and minimum filtration requirement.

Have a Similar Pump Application?

If you are selecting a VFD for a pool filtration pump, send us the motor nameplate, supply voltage, pump type, control schedule and site installation conditions.

AUSENIST can recommend the appropriate VFD model and control configuration.
